10118242-001RLF

Active

Amphenol ICC (FCI)

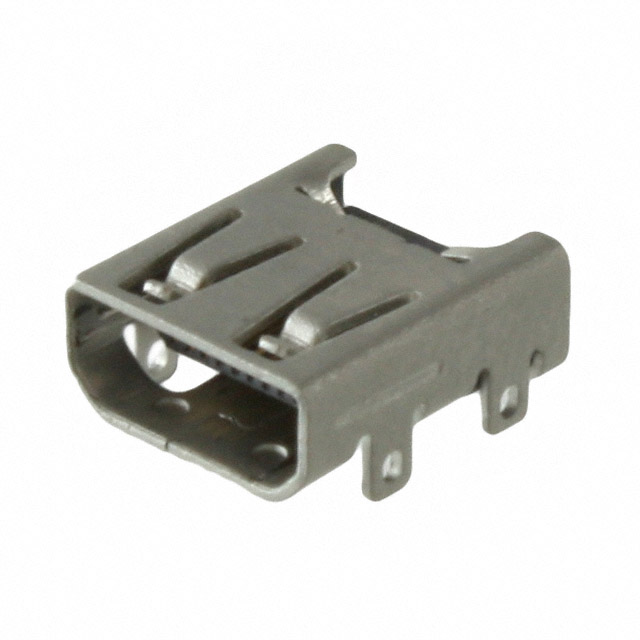

CONN RCP MICRO HDMI 19POS SMD RA

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCP MICRO HDMI 19POS SMD RA

Technical Specifications

Parameters and characteristics for this part

Specification	10118242-001RLF

Connector Type	HDMI - Micro
Contact Finish	Gold
Current Rating (Amps)	300 mA
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts [custom]	19
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Termination	Solder
Voltage - Rated	40 V

Part	Shielding	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Mounting Feature	Voltage - Rated	Shell/Shielding Material	Mating Cycles	Termination	Material Flammability Rating	Number of Contacts [custom]	Connector Type	Current Rating (Amps)	Mounting Type	Contact Finish	Number of Ports
Amphenol ICC (FCI) 10118242-002RLF	Shielded	Black	-30 ░C	80 C	Receptacle	Horizontal	40 V	Stainless Steel	5000	Solder	UL94 V-0	19	HDMI - Micro	300 mA	Surface Mount Right Angle	Gold	1
Amphenol ICC (FCI) 10118242-001RLF		Black	-30 ░C	80 C	Receptacle	Horizontal	40 V	Stainless Steel	5000	Solder	UL94 V-0	19	HDMI - Micro	300 mA	Surface Mount Right Angle Through Hole	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

HDMI - Micro Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
