XH3B-4042-A

Active

Omron Electronics Inc-EMC Div

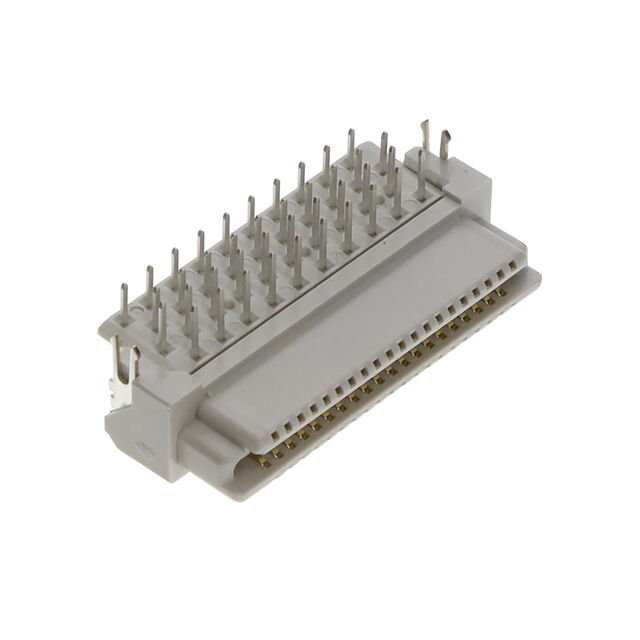

CONN SOCKET 40POS R/A GOLD

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN SOCKET 40POS R/A GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Socket, Outer Shroud Contacts Through Hole, Right Angle Gold

Specification	XH3B-4042-A	XH3B Series

Connector Type	Socket, Outer Shroud Contacts	Socket, Outer Shroud Contacts
Contact Finish	Gold	Gold
Height Above Board	-	9.3 mm
Height Above Board	-	0.366 in
Mated Stacking Heights	-	12 - 16 mm
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	40	30 - 100
Number of Rows	2	2
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm

Part	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Connector Type	Mated Stacking Heights
Omron Electronics Inc-EMC Div XH3B-0141-A	Gold	2	0.05 in	1.27 mm	100	9.3 mm	0.366 in	Through Hole	Outer Shroud Contacts, Socket	12 mm, 14 mm, 16 mm
Omron Electronics Inc-EMC Div XH3B-3042-A	Gold	2	0.05 in	1.27 mm	30			Through Hole, Right Angle	Outer Shroud Contacts, Socket
Omron Electronics Inc-EMC Div XH3B-3041-A	Gold	2	0.05 in	1.27 mm	30	9.3 mm	0.366 in	Through Hole	Outer Shroud Contacts, Socket	12 mm, 14 mm, 16 mm
Omron Electronics Inc-EMC Div XH3B-4042-A	Gold	2	0.05 in	1.27 mm	40			Through Hole, Right Angle	Outer Shroud Contacts, Socket
Omron Electronics Inc-EMC Div XH3B-5042-A	Gold	2	0.05 in	1.27 mm	50			Through Hole, Right Angle	Outer Shroud Contacts, Socket
