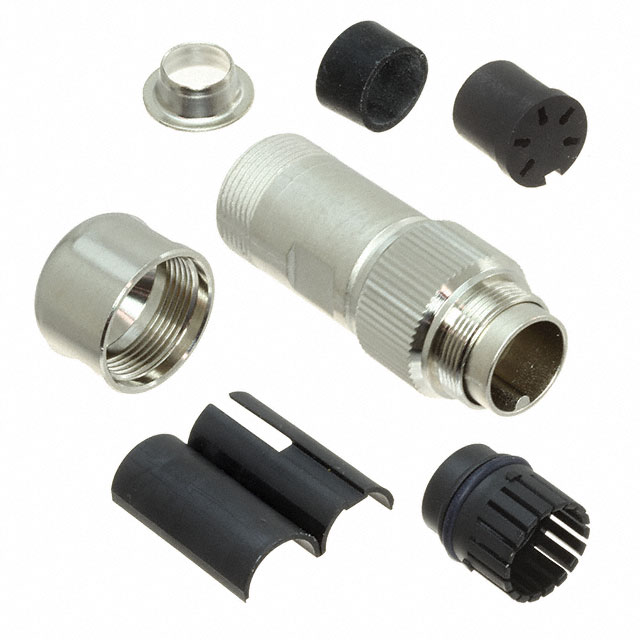

Specification	C091 11H005 002 4

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Threaded
Features	Coupling Nut, Strain Relief, Backshell
Housing Color	Silver
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	5
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Type	For Male Pins

C091 11H005 Series

Part	Connector Type	Mounting Type	Housing Color	Shielding	Shell Material	Material Flammability Rating	Fastening Type	Note	Shell Size - Insert	Contact Type	Includes	Includes Total Count	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Type	Orientation	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Insert Material	Contact Size	Features
Amphenol Tuchel Industrial C091 11H005 000 2	Plug Housing	Free Hanging (In-Line)	Silver	Shielded	Die Cast	UL94 V-0	Threaded	Contacts Not Included	M16-5	Crimp	Backshell Cable Nut Connector Gasket pc Cable Clamp Screws Washers	10 pcs	Circular	100 °C	-40 °C	For Male Pins	Keyed	Nickel	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	5	Thermoplastic	1.5 mm	Backshell Cable Clamp Coupling Nut
Amphenol Tuchel Industrial C091 11H005 002 4	Plug Housing	Free Hanging (In-Line)	Silver	Shielded	Zinc Die Cast	UL94 V-0	Threaded	Contacts Not Included	M16-5	Crimp			Circular	100 °C	-40 °C	For Male Pins	Keyed	Nickel	Dust Tight Water Resistant Waterproof	IP68 IP69K	5	Thermoplastic		Backshell Coupling Nut Strain Relief
