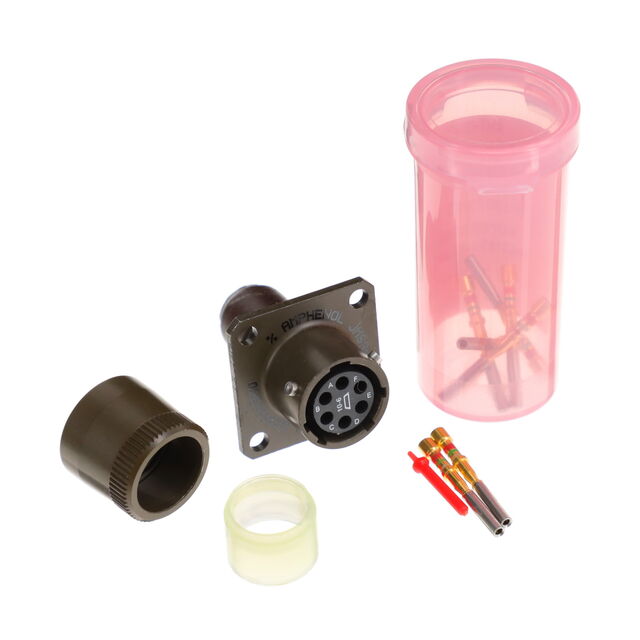

MS3120E10-6S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3120E10-6S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3120E10-6S | MS3120E10 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.09 | |
| 10 | $ 51.48 | |||
| 25 | $ 49.50 | |||
| 50 | $ 47.85 | |||
| 100 | $ 45.21 | |||
MS3120E10 Series
CONN RCPT FMALE 6POS GOLD CRIMP
| Part | Ingress Protection | Contact Material | Shell Finish | Orientation | Shell Material | Backshell Material, Plating | Number of Positions | Termination | Fastening Type | Features | Connector Type | Mounting Feature | Contact Finish - Mating | Qualification | Shell Size - Insert | Insert Material | Primary Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Grade | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3120E10-6S | Environment Resistant | Copper Alloy | Olive Drab Chromate over Cadmium | N | Aluminum | Aluminum, Olive Drab Chromate over Cadmium | 6 | Crimp | Bayonet Lock | Backshell | Receptacle, Female Sockets | Flange | Gold | MIL-DTL-26482 Series I | 10-6 | Neoprene | Metal | Olive Drab | -55 °C | 125 °C | Unshielded | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military |
Amphenol Industrial Operations MS3120E10-6PW | Environment Resistant | Copper Alloy | Olive Drab Chromate over Cadmium | W | Aluminum | Aluminum, Olive Drab Chromate over Cadmium | 6 | Crimp | Bayonet Lock | Backshell | Male Pins, Receptacle | Flange | Gold | MIL-DTL-26482 Series I | 10-6 | Neoprene | Metal | Olive Drab | -55 °C | 125 °C | Unshielded | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military |
Description
General part information
MS3120E10 Series
6 Position Circular Connector Receptacle, Female Sockets Crimp
