DS28E25EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR DS28E25
Deep-Dive with AI
Search across all available documentation for this part.
DS28E25EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR DS28E25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS28E25EVKIT# | DS28E25 Series |
|---|---|---|
| Applications | - | Authentication, Security |
| Contents | Accessories, Board(s) | Accessories, Board(s) |
| Function | Anti Tamper and Security | Anti Tamper and Security |
| Mounting Type | - | Surface Mount, Through Hole |
| Package / Case | - | 2-SFN, TO-92-2, TO-226-2, 6-SMD, J-Lead, TO-226-3, TO-92-3 |
| Package / Case | - | TO-226AC |
| Secondary Attributes | Graphical User Interface (GUI) | Graphical User Interface (GUI) |
| Supplied Contents | Accessories, Board(s) | Accessories, Board(s) |
| Supplier Device Package | - | 6-TDFN (3x3), 2-SFN (6x6), TO-92-2, 6-TSOC, TO-92-3 |
| Type | Interface | Authentication Chip, Interface |
| Utilized IC / Part | DS28E25 | DS28E25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 111.46 | |
DS28E25 Series
IC AUTHENTICATION CHIP 6TDFN
| Part | Type | Mounting Type | Supplier Device Package | Applications | Package / Case | Utilized IC / Part | Contents | Supplied Contents | Secondary Attributes | Function | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS28E25Q+T | Authentication Chip | Surface Mount | 6-TDFN (3x3) | Authentication, Security | |||||||
Analog Devices Inc./Maxim Integrated DS28E25G+U | Authentication Chip | Surface Mount | 2-SFN (6x6) | Authentication, Security | 2-SFN | ||||||
Analog Devices Inc./Maxim Integrated DS28E25EVKIT# | Interface | DS28E25 | Accessories, Board(s) | Accessories, Board(s) | Graphical User Interface (GUI) | Anti Tamper and Security | |||||
Analog Devices Inc./Maxim Integrated DS28E25Q+U | Authentication Chip | Surface Mount | 6-TDFN (3x3) | Authentication, Security | |||||||
Analog Devices Inc./Maxim Integrated DS28E25+ | Authentication Chip | Through Hole | TO-92-2 | Authentication, Security | TO-226-2, TO-92-2 | TO-226AC | |||||
Analog Devices Inc./Maxim Integrated DS28E25P+T | Authentication Chip | Surface Mount | 6-TSOC | Authentication, Security | 6-SMD, J-Lead | ||||||
Analog Devices Inc./Maxim Integrated DS28E25+T | Authentication Chip | Through Hole | TO-92-3 | Authentication, Security | TO-226-3, TO-92-3 | ||||||
Analog Devices Inc./Maxim Integrated DS28E25P+ | Authentication Chip | Surface Mount | 6-TSOC | Authentication, Security | 6-SMD, J-Lead |
Description
General part information
DS28E25 Series

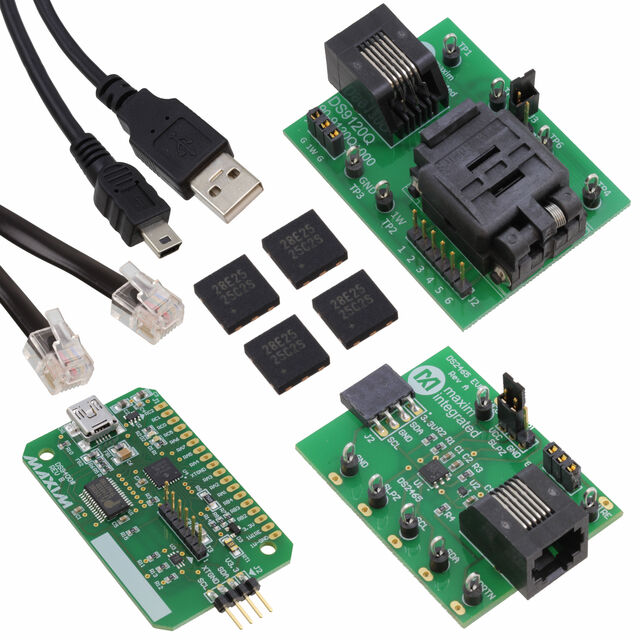

DS28E25 Anti Tamper and Security Interface Evaluation Board
Documents
Technical documentation and resources
