E112BL

Active

Switchcraft Inc.

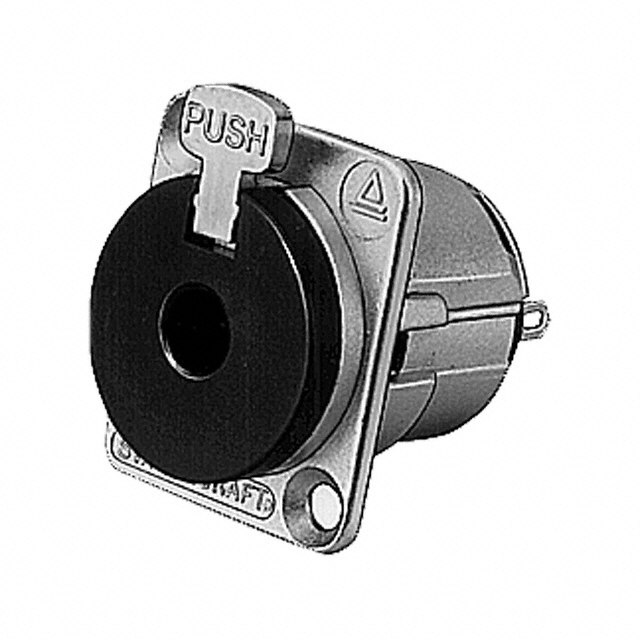

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E112BL	E11 Series

Actual Diameter [diameter]	6.43 mm	6.35 - 6.43 mm
Actual Diameter [diameter]	0.253 "	0.25 - 0.253 in
Body Color	Silver, Black	Silver, Black
Body Material	Thermoplastic	Brass, Thermoplastic
Connector Type	Phone Jack	Phone Jack
Contact Material	Copper Alloy	Brass, Copper Alloy
Contact Material - Plating	Tin	Tin
Contact Material - Plating	-	Nickel
Current Rating (Amps)	0.25 A	0.25 A
Features	Flange, Lock	Thread Lock, Mounting Hardware, Flange, Lock
Gender	Female	Female
Housing Material	Zinc Die Cast	Zinc Die Cast
Includes	-	1 Connector, 1 Flange, 1 Nut, 1 Washer, 4 Screws
Internal Switch(s)	False	False
Number of Positions/Contacts [custom]	3	2 - 3
Number of Positions/Contacts [custom]	3	2 - 3
Panel Hole Size	0.937 "	0.937 "
Panel Hole Size	23.8 mm	23.8 mm
Panel Hole Size	-	24 mm
Panel Hole Size	-	0.945 in
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Mono, Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Voltage - Rated [custom]	48 VDC	48 VDC

CONN JACK MONO 6.35MM PNL MNT

Part	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Signal Lines	Actual Diameter [diameter]	Actual Diameter [diameter]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Features	Contact Material - Plating [custom]	Shielding	Contact Material	Body Color	Termination	Gender	Body Material	Includes	Connector Type	Current Rating (Amps)	Voltage - Rated [custom]	Contact Material - Plating	Panel Hole Size	Panel Hole Size	Housing Material
Switchcraft Inc. E11BPKG	2	2	Mono	0.25 in	6.35 mm	24 mm	0.945 in	Mounting Hardware, Thread Lock	Nickel	Unshielded	Brass	Silver	Solder Eyelet(s)	Female	Brass	1 Connector, 1 Flange, 1 Nut, 1 Washer, 4 Screws	Phone Jack
Switchcraft Inc. E112BL	3	3	Stereo	0.253 "	6.43 mm			Flange, Lock		Unshielded	Copper Alloy	Black, Silver	Solder Eyelet(s)	Female	Thermoplastic		Phone Jack	0.25 A	48 VDC	Tin	0.937 "	23.8 mm	Zinc Die Cast
Switchcraft Inc. E11B	2	2	Mono	0.25 in	6.35 mm	24 mm	0.945 in	Mounting Hardware, Thread Lock	Nickel	Unshielded	Brass	Black, Silver	Solder Eyelet(s)	Female	Thermoplastic	1 Connector, 1 Flange, 1 Nut, 1 Washer	Phone Jack						Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
