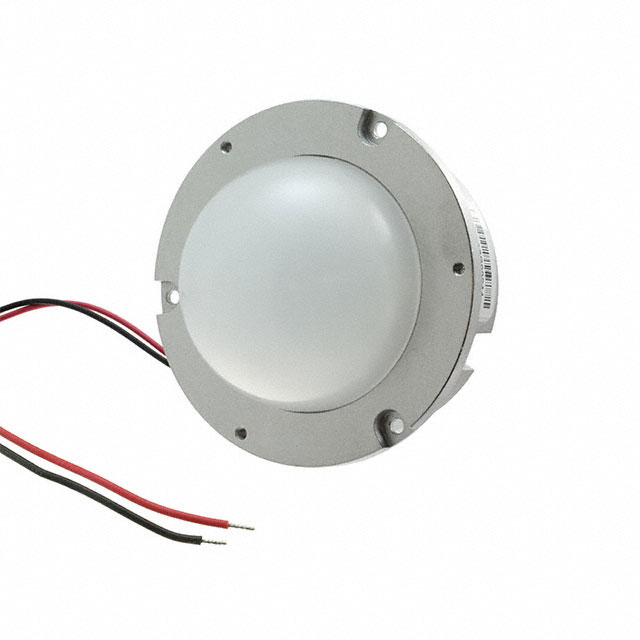

LMH02B-2000-27G9-00001TW

Obsolete

Cree LED

LED MOD LMH2 WM WH ROUND 2700K

Search across all available documentation for this part.

Obsolete

Cree LED

LED MOD LMH2 WM WH ROUND 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	LMH02B-2000-27G9-00001TW

CCT (K)	2700 K
Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	90
Current - Max [Max]	940 mA
Current - Test	450 mA
Features	WhiteLight, Dimming
Height [z]	60.3 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	61.3 mm
Lumens/Watt @ Current - Test	127 lm/W
Luminous Flux @ Current/Temperature	2000 lm
Size / Dimension [diameter]	88.2 mm
Temperature - Test	55 °C
Type	LED Module
Viewing Angle	105 °
Voltage - Forward (Vf) (Typ)	35 V

Part	Type	Temperature - Test	Color	Features	Size / Dimension [diameter]	Light Emitting Surface (LES) [diameter]	Lens Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Current - Max [Max]	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Viewing Angle	Configuration	Current - Test	Height [z]	CCT (K)
Cree LED LMH02B-1250-30G9-00000TW	LED Module	55 °C	Warm White	Dimming WhiteLight	88.2 mm	68 mm	Flat	1250 lm	123 lm/W	750 mA	90	22.5 V	82 °	Round	450 mA	30 mm
Cree LED LMH02B-3000-27G9-00000TW	LED Module	55 °C	Warm White	Dimming WhiteLight	88.2 mm	68 mm	Flat	3000 lm	125 lm/W	1 A	90	40 V	82 °	Round	600 mA	30 mm	2700 K
Cree LED LMH02B-3000-30G9-00000TW	LED Module	55 °C	Warm White	Dimming WhiteLight	88.2 mm	68 mm	Flat	3000 lm	125 lm/W	1 A	90	40 V	82 °	Round	600 mA	30 mm
Cree LED LMH02B-1250-35G9-00000TW	LED Module	55 °C	Warm White	Dimming WhiteLight	88.2 mm	68 mm	Flat	1250 lm	123 lm/W	750 mA	90	22.5 V	82 °	Round	450 mA	30 mm	3500 K
Cree LED LMH02B-2000-40G9-00001TW	LED Module	55 °C	Neutral White	Dimming WhiteLight	88.2 mm	61.3 mm	Domed	2000 lm	127 lm/W	940 mA	90	35 V	105 °	Round	450 mA	60.3 mm	4000 K
Cree LED LMH02B-2000-35G9-00000TW	LED Module	55 °C	Warm White	Dimming WhiteLight	88.2 mm	68 mm	Flat	2000 lm	127 lm/W	940 mA	90	35 V	82 °	Round	450 mA	30 mm	3500 K
Cree LED LMH02B-2000-27G9-00001TW	LED Module	55 °C	Warm White	Dimming WhiteLight	88.2 mm	61.3 mm	Domed	2000 lm	127 lm/W	940 mA	90	35 V	105 °	Round	450 mA	60.3 mm	2700 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module LMH2 White, Warm Round
