SSL-LX20R6GD

Active

Lumex Opto/Components Inc.

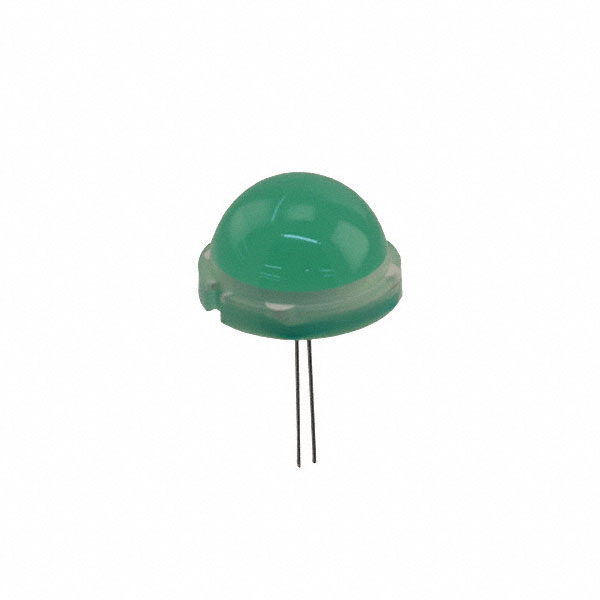

LED GRN DIFFUSED 6CHIP JUMBO T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN DIFFUSED 6CHIP JUMBO T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green LED Indication - Discrete 6.6V Radial

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED RED DIFFUSED 6CHIP JUMBO T/H

Part	Color	Configuration	Lens Transparency	Current - Test	Millicandela Rating	Wavelength - Peak	Height (Max) [Max]	Viewing Angle	Lens Size [diameter]	Mounting Type	Package / Case	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Lens Style	Lens Color
Lumex Opto/Components Inc. SSL-LX20R6SID	Red	Standard	Diffused	20 mA	200 mcd	636 nm	13.5 mm	120 °	20 mm	Through Hole	Radial	6.3 V	6-CHIP JUMBO	Round with Domed Top	Red
Lumex Opto/Components Inc. SSL-LX20R6YD	Yellow	Standard	Diffused	20 mA	23 mcd	585 nm	13.5 mm	120 °	20 mm	Through Hole	Radial	6.3 V	6-CHIP JUMBO	Round with Domed Top	Yellow
Lumex Opto/Components Inc. SSL-LX20R6ID	Red	Standard	Diffused	20 mA	35 mcd	635 nm	13.5 mm	120 °	20 mm	Through Hole	Radial	6 V	6-CHIP JUMBO	Round with Domed Top	Red
Lumex Opto/Components Inc. SSL-LX20R6GD	Green	Standard	Diffused	20 mA	25 mcd	565 nm	13.5 mm	120 °	20 mm	Through Hole	Radial	6.6 V	6-CHIP JUMBO	Round with Domed Top	Green
Lumex Opto/Components Inc. SSL-LX20R6SRD	Red	Standard	Diffused	20 mA	60 mcd	660 nm	13.5 mm	120 °	20 mm	Through Hole	Radial	5.1 V	6-CHIP JUMBO	Round with Domed Top	Red
