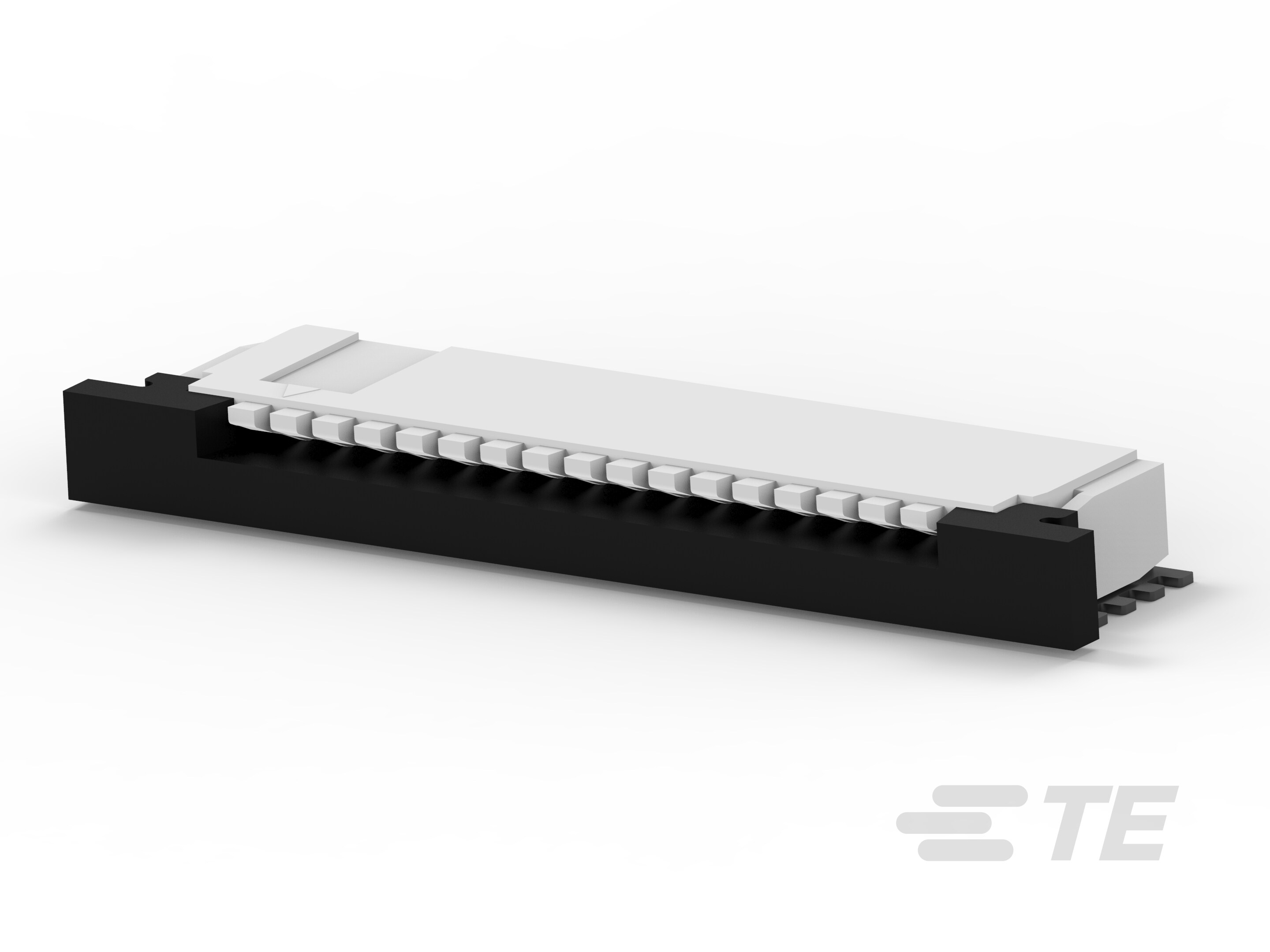

Specification	1-84953-6

Actuator Color	Black
Actuator Material	Nylon, Glass Filled, Polyamide (PA)
Cable End Type	Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Finish Thickness	78.7 µin
Contact Material	Phosphor Bronze
Current Rating	1 A
Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.101 in
Housing Color	Natural
Housing Material	Glass Filled, LCP, Liquid Crystal Polymer
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	16
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.039 in
Termination	Solder
Voltage Rating	200 VDC

84953 Series

Part	Contact Material	Connector/Contact Type	Height Above Board	Voltage Rating	Cable End Type	Termination	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Flat Flex Type	Locking Feature	Mounting Type	Housing Material	Features	Contact Finish	Number of Positions	Actuator Material	FFC, FCB Thickness	Pitch	Housing Color	Current Rating	Contact Finish Thickness	Actuator Color
TE Connectivity AMP Connectors 3-84953-0	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	30	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 2-84953-9	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	29	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 2-84953-7	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	27	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 1-84953-3	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	13	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 84953-9	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	9	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 2-84953-2	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	22	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 84953-4	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	4	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 1-84953-1	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	11	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 2-84953-8	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	28	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
TE Connectivity AMP Connectors 2-84953-0	Phosphor Bronze	Contacts Top	0.101 in	200 VDC	Straight	Solder	UL94 V-0	-40 °C	85 °C	FPC	Slide Lock	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	Solder Retention Zero Insertion Force (ZIF)	Tin	20	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.039 in	Natural	1 A	78.7 µin	Black
