84953 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

1MM FPC HORZ.TOP CONT.ASSY 30P

Part	Housing Color	Cable End Type	Flat Flex Type	Material Flammability Rating	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Material	Connector/Contact Type	Contact Finish	Voltage Rating	Actuator Color	FFC, FCB Thickness	Contact Material	Number of Positions	Locking Feature	Height Above Board	Height Above Board	Mounting Type
TE Connectivity Raychem Cable Protection 3-84953-0	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	30	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle

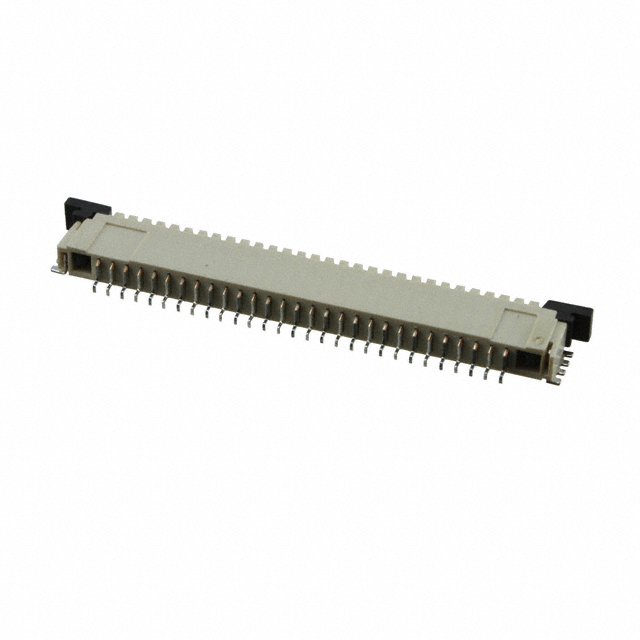

TE Connectivity Raychem Cable Protection 2-84953-9	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	29	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle
TE Connectivity Raychem Cable Protection 2-84953-7	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	27	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle

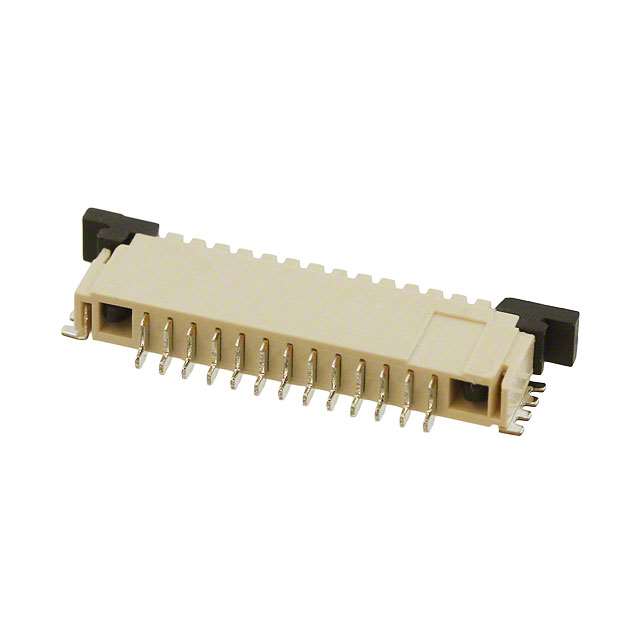

TE Connectivity Raychem Cable Protection 1-84953-3	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	13	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle
TE Connectivity Raychem Cable Protection 84953-9	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	9	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle

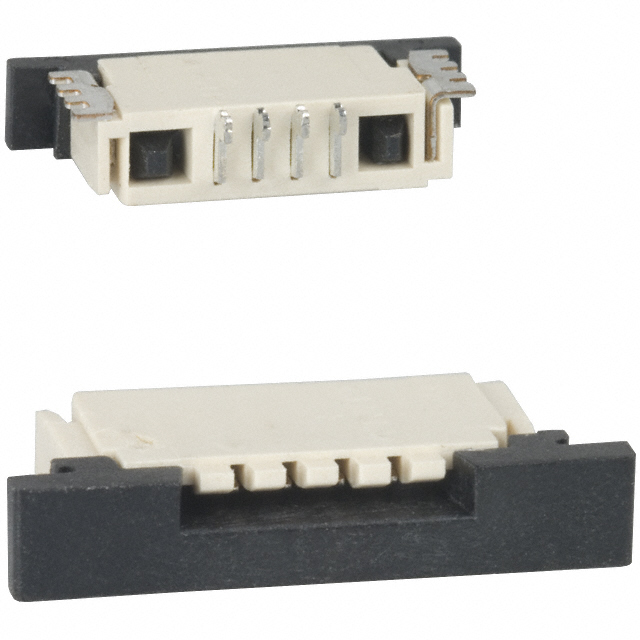

TE Connectivity Raychem Cable Protection 84953-4	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	4	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle

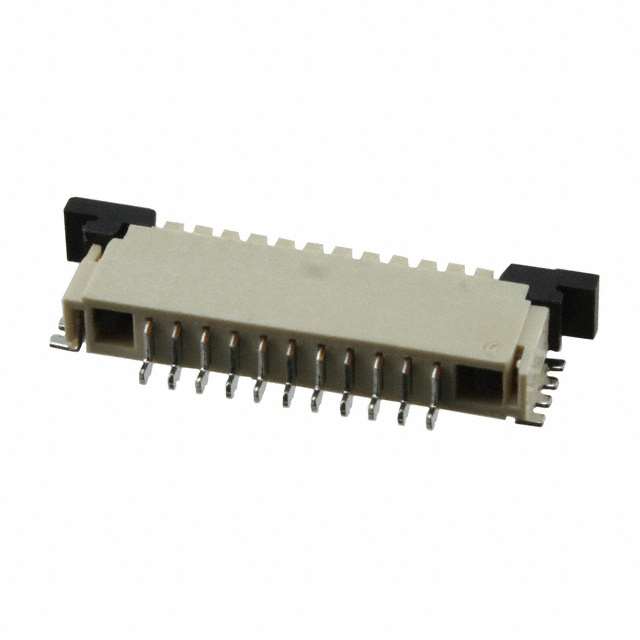

TE Connectivity Raychem Cable Protection 1-84953-1	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	11	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle

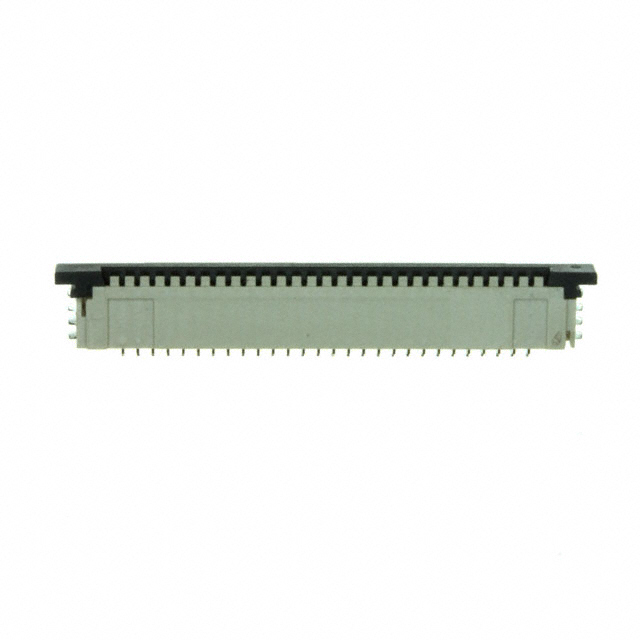

TE Connectivity Raychem Cable Protection 2-84953-8	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	28	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle

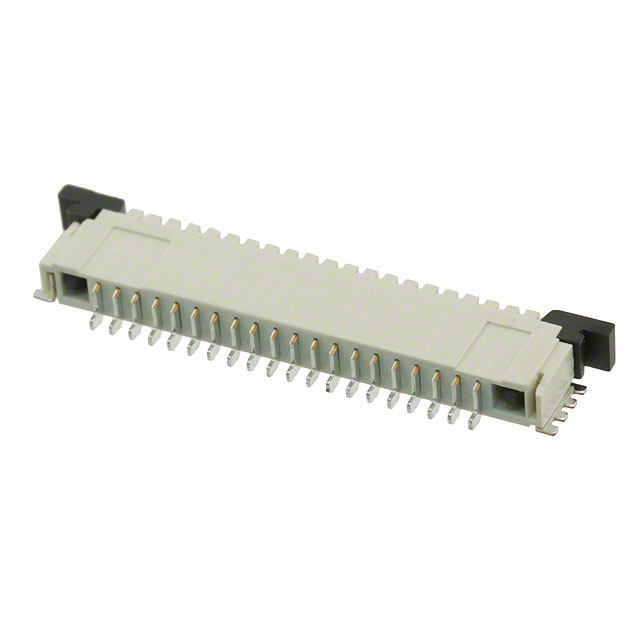

TE Connectivity Raychem Cable Protection 2-84953-0	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	20	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle
TE Connectivity Raychem Cable Protection 1-84953-9	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP) Glass Filled	Solder	85 °C	-40 °C	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Nylon Polyamide (PA)	Contacts Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	19	Slide Lock	0.101 "	2.56 mm	Surface Mount Right Angle
