T4013008041-000
ActiveTE Connectivity AMP Connectors

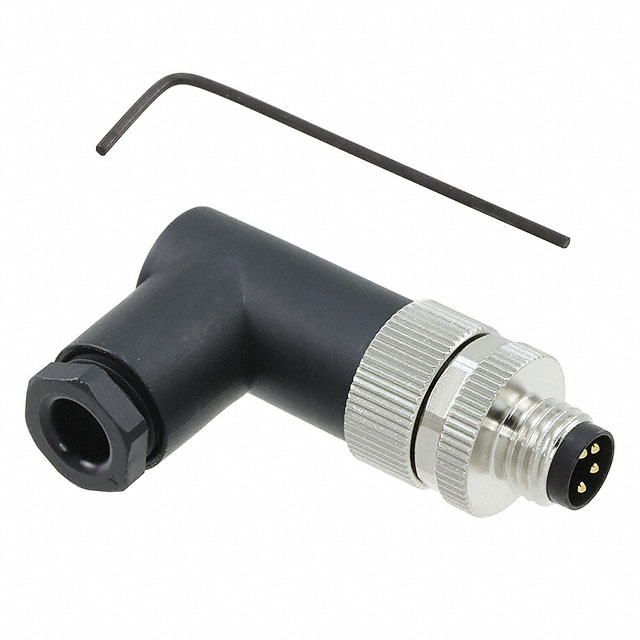

CONN PLUG MALE 4POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4013008041-000
ActiveTE Connectivity AMP Connectors
CONN PLUG MALE 4POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4013008041-000 |
|---|---|
| Applications | Telecommunications, Automation Control, Industrial |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Current Rating (Amps) | 3 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M8-4 |
| Termination | Screw |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.31 | |
| 10 | $ 10.23 | |||
| 25 | $ 9.96 | |||
| 50 | $ 9.58 | |||
| 100 | $ 8.88 | |||
| 250 | $ 8.82 | |||
| 500 | $ 8.50 | |||
| 1000 | $ 7.58 | |||
T40130 Series
CONN PLUG MALE 4POS GOLD SCREW
| Part | Shell Size - Insert | Orientation | Features | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Primary Material | Mounting Type | Contact Finish - Mating | Applications | Connector Type | Shell Finish | Voltage Rating | Current Rating (Amps) | Ingress Protection | Number of Positions | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4013008041-000 | M8-4 | A | Backshell | 85 °C | -40 °C | Silver | 3 µin | 0.076 µm | Screw | Metal | Free Hanging (In-Line), Right Angle | Gold | Automation Control, Industrial, Telecommunications | Male Pins, Plug | Nickel | 30 VDC | 3 A | IP67 - Dust Tight, Waterproof | 4 | Brass |
Description
General part information
T40130 Series
4 Position Circular Connector Plug, Male Pins Screw
