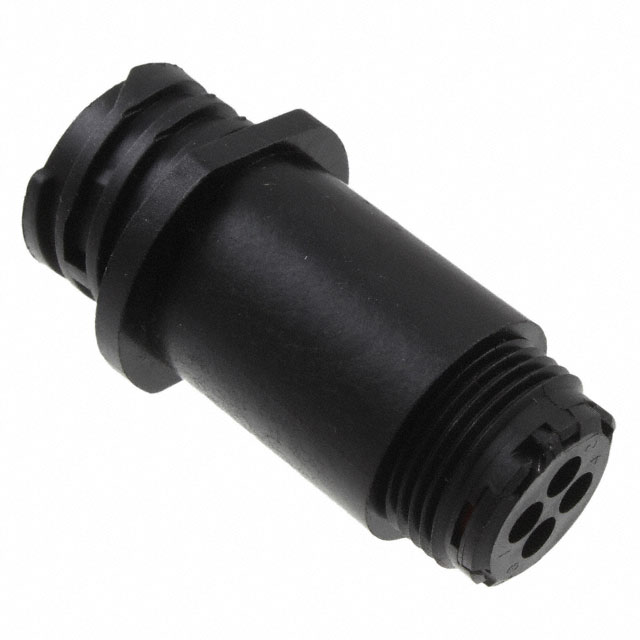

796096-2

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 4POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796096-2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	11-4
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSNG MALE 4POS INLINE

Part	Insert Material	Number of Positions	Shielding	Type	Contact Size	Note	Ingress Protection	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Mounting Type	Connector Type	Orientation	Contact Type	Material Flammability Rating	Shell Size - Insert
TE Connectivity AMP Connectors 796096-2	Thermoplastic	4	Unshielded	For Male Pins	16	Contacts Not Included	IP67 - Dust Tight, Waterproof	Circular	105 ░C	-55 °C	Black	Free Hanging (In-Line)	Receptacle Housing	Keyed	Crimp	UL94 V-0	11-4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
