PG20L-D20-HHC0

Active

NMB TECHNOLOGIES

PG20L-D20-HHC0 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

PG20L-D20-HHC0 ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

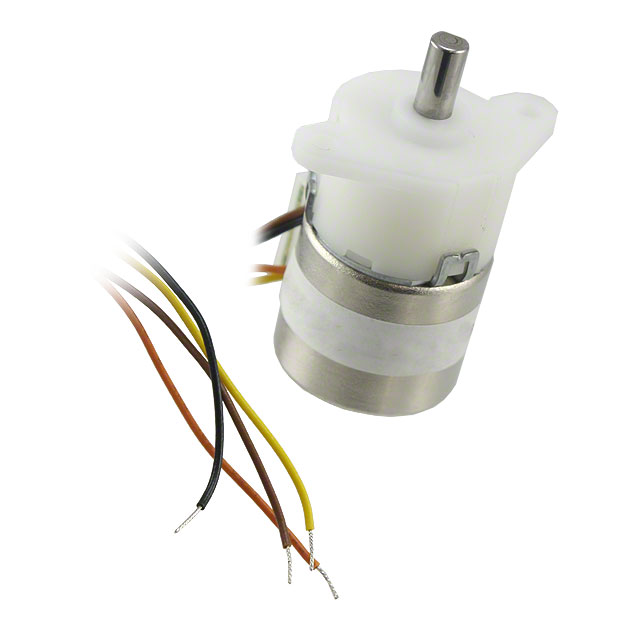

Bipolar Stepper Motor Permanent Magnet Gear Motor Frame Size 1818.0 Step 350 mA 10VDC

Technical documentation and resources

Part	Type	Step Angle	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Features	Current Rating (Amps)	Steps per Revolution	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Coil Type	Mounting Hole Spacing	Mounting Hole Spacing	Voltage - Rated	Termination Style
NMB TECHNOLOGIES PG20L-K20-HHF1	Permanent Magnet Gear Motor	0.198 °	0.157 in	4 mm	20 mm	0.787 in	Round	Flatted Shaft	350 mA	1818	0.394 in	10 mm	Bipolar	0.984 in	25 mm	10 V	Wire Leads
NMB TECHNOLOGIES PG20L-D20-HHC0	Permanent Magnet Gear Motor	0.198 °	0.157 in	4 mm	20 mm	0.787 in	Round	Flatted Shaft	350 mA	1818	0.394 in	10 mm	Bipolar	0.984 in	25 mm	10 V	Wire Leads
