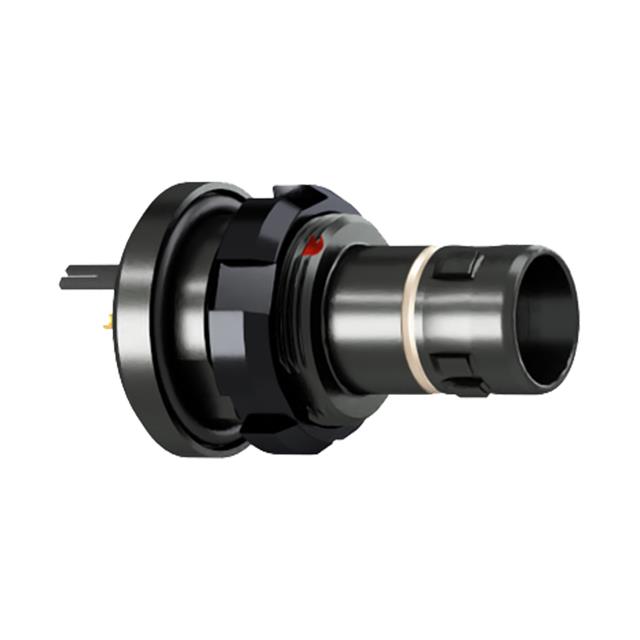

GW0YCR-P07VC00-000L

Active

ODU

ODU AMC RECEPT, STY W, SZ 0, 7P,

Search across all available documentation for this part.

Active

ODU

ODU AMC RECEPT, STY W, SZ 0, 7P,

Technical Specifications

Parameters and characteristics for this part

Specification	GW0YCR-P07VC00-000L

Applications	Medical, Industrial, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	C
Primary Material	Metal
Shell Finish	Ruthenium over Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert	0
Shielding	Shielded
Termination	Solder
Voltage Rating	300 VDC

Part	Ingress Protection	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Shell Material	Contact Finish - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Mounting Type	Fastening Type	Orientation	Number of Positions	Contact Material	Applications	Voltage Rating	Connector Type	Primary Material	Mounting Feature	Termination	Current Rating (Amps)	Shielding
ODU GW0YCR-P07VC00-000L	IP68 IP69K	UL94 V-0	1.27 µm	50 µin	Ruthenium over Electroless Nickel	Aluminum	Gold	Silver	-51 °C	125 °C	0	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Detent Lock Push-Pull	C	7	Copper Alloy	Industrial Medical Military	300 VDC	Receptacle Female Sockets	Metal	Bulkhead - Front Side Nut	Solder	5 A	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 144.50

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder
