T4162224005-005
ActiveTE Connectivity AMP Connectors

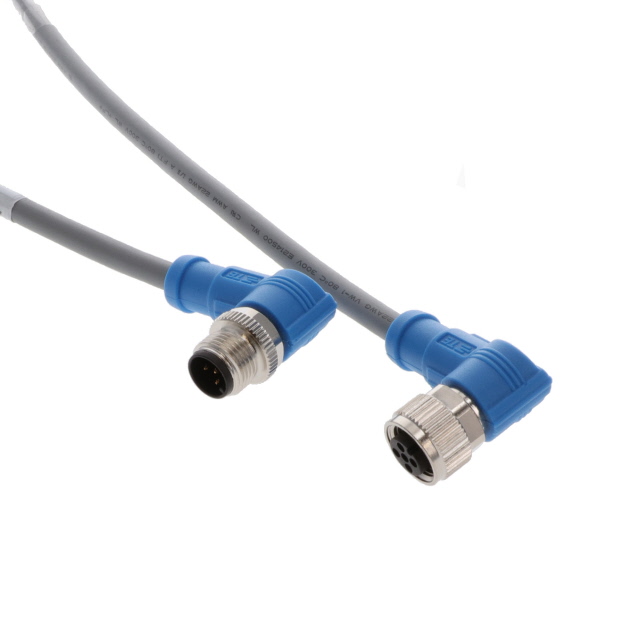

CBL 5POS RCPT RA TO PLUG 16.4'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4162224005-005
ActiveTE Connectivity AMP Connectors
CBL 5POS RCPT RA TO PLUG 16.4'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4162224005-005 | T41622 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 | 4 - 5 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Number of Positions Loaded | - | 2 - 4 |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle, Right Angle | Receptacle, Right Angle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 | 4 - 5 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Number of Positions Loaded | - | 2 - 4 positions |
| 2nd Connector Shell Size - Insert | M12 | M12 |
| 2nd Connector Type | Plug, Right Angle | Plug, Right Angle, Plug |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyvinyl Chloride (PVC), Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Gray | Black, Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length | - | 1.64 - 3.28 ft |
| Length | - | 1 - 500 mm |
| Length | - | 4.92 ' |
| Length | - | 1.5 m |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 48.77 | |
| 10 | $ 40.42 | |||
| 26 | $ 37.41 | |||
| 50 | $ 35.48 | |||
| 100 | $ 33.55 | |||
| 250 | $ 31.85 | |||
T41622 Series
CBL 5POS MALE TO FMALE 1.64'
| Part | 1st Connector Gender | Shielding | 2nd Connector Mounting Type | Assembly Configuration | 1st Connector Type | 1st Connector Number of Positions | 2nd Connector Shell Size - Insert | Cable Material | Length [x] | Length [x] | 2nd Connector Type | 2nd Connector Gender | Color | 1st Connector Orientation | 2nd Connector Number of Positions Loaded | 2nd Connector Number of Positions | Ingress Protection | 1st Connector Mounting Type | Usage | 1st Connector Shell Size - Insert | Cable Type | 1st Connector Number of Positions Loaded | 2nd Connector Number of Positions Loaded | 1st Connector Number of Positions Loaded | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4162214004-001 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyvinyl Chloride (PVC) | 1.64 ft | 500 mm | Plug, Right Angle | Female Sockets | Black | A | 4 positions | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 4 | ||||
TE Connectivity AMP Connectors T4162214002-001 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyvinyl Chloride (PVC) | 1.64 ft | 500 mm | Plug, Right Angle | Female Sockets | Black | A | 2 | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 2 | ||||
TE Connectivity AMP Connectors T4162224003-002 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyurethane (PUR) | 3.28 ft | 1 m | Plug, Right Angle | Female Sockets | Gray | A | 3 | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 3 | ||||
TE Connectivity AMP Connectors T4162214004-005 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyvinyl Chloride (PVC) | Plug, Right Angle | Female Sockets | Black | A | 4 positions | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 4 | ||||||
TE Connectivity AMP Connectors T4162224004-001 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyurethane (PUR) | 1.64 ft | 500 mm | Plug, Right Angle | Female Sockets | Gray | A | 4 positions | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 4 | ||||
TE Connectivity AMP Connectors T4162223004-002 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyurethane (PUR) | 3.28 ft | 1 m | Plug | Female Sockets | Gray | A | 4 positions | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 4 | ||||
TE Connectivity AMP Connectors T4162223005-001 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyurethane (PUR) | 1.64 ft | 500 mm | Plug | Female Sockets | Gray | A | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | All | All | ||||
TE Connectivity AMP Connectors T4162224004-005 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyurethane (PUR) | Plug, Right Angle | Female Sockets | Gray | A | 4 positions | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 4 | ||||||
TE Connectivity AMP Connectors T4162223005-002 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyurethane (PUR) | 3.28 ft | 1 m | Plug | Female Sockets | Gray | A | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | All | All | ||||
TE Connectivity AMP Connectors T4162224005-005 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyurethane (PUR) | Plug, Right Angle | Female Sockets | Gray | A | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | All | All | ||||||
TE Connectivity AMP Connectors T4162223004-005 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyurethane (PUR) | Plug | Female Sockets | Gray | A | 4 positions | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 4 | ||||||
TE Connectivity AMP Connectors T4162223004-001 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 4 | M12 | Polyurethane (PUR) | 1.64 ft | 500 mm | Plug | Female Sockets | Gray | A | 4 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | All | All | ||||
TE Connectivity AMP Connectors T4162213005-005 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyvinyl Chloride (PVC) | Plug | Female Sockets | Black | A | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | All | All | ||||||
TE Connectivity AMP Connectors T4162214003-003 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyvinyl Chloride (PVC) | Plug, Right Angle | Female Sockets | Black | A | 3 | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 3 | 4.92 ' | 1.5 m | ||||
TE Connectivity AMP Connectors T4162213004-005 | Male Pins | Shielded | Free Hanging (In-Line) | Standard | Receptacle, Right Angle | 5 | M12 | Polyvinyl Chloride (PVC) | Plug | Female Sockets | Black | A | 4 positions | 5 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Industrial Environments | M12 | Round | 4 |
Description
General part information
T41622 Series
Circular Cable Assembly Shielded 16.40' (5.00m)
