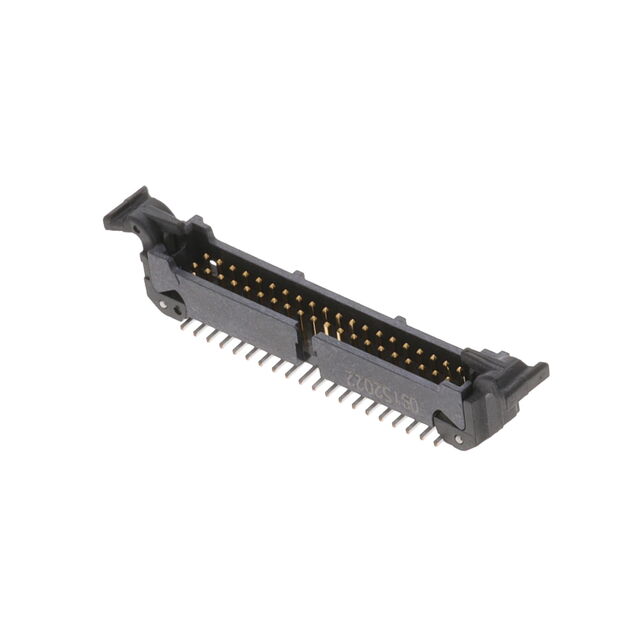

45240-220200

Active

3M (TC)

40P HDR SMT LATCH AU FLASH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

45240-220200

Active

3M (TC)

40P HDR SMT LATCH AU FLASH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45240-220200

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Pick and Place, Keying Slot
Insulation Height	0.222 "
Insulation Height	5.64 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VAC

45240 Series

Part	Fastening Type	Shrouding	Material Flammability Rating	Contact Finish - Mating	Contact Shape	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Mounting Type	Termination	Insulation Height	Insulation Height	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Connector Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Style	Contact Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Mating
3M (TC) 45240-600230	Push-Pull	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	200 µin	5.08 µm	40	Through Hole	Solder	0.222 "	5.64 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	3 µin	0.076 µm	Keying Slot	0.05 in	1.27 mm	125 VAC	Header	All	0.094 in	2.4 mm	Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin
3M (TC) 45240-620230	Push-Pull	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	200 µin	5.08 µm	40	Through Hole	Solder	0.222 "	5.64 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	3 µin	0.076 µm	Keying Slot	0.05 in	1.27 mm	125 VAC	Header	All	0.094 in	2.4 mm	Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin	Black
3M (TC) 45240-620200	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	100 µin	2.54 µm	40	Through Hole	Solder	0.222 "	5.64 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm			Keying Slot	0.05 in	1.27 mm	125 VAC	Header	All	0.094 in	2.4 mm	Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin		Flash
3M (TC) 45240-200200	Push-Pull	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	100 µin	2.54 µm	40	Surface Mount	Solder	0.222 "	5.64 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm			Keying Slot Pick and Place	0.05 in	1.27 mm	125 VAC	Header	All			Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin		Flash
3M (TC) 45240-520230	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	200 µin	5.08 µm	40	Through Hole Right Angle	Solder	0.21 in	5.33 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	3 µin	0.076 µm	Keying Slot	0.05 in	1.27 mm	125 VAC	Header	All	0.094 in	2.4 mm	Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin
3M (TC) 45240-600200	Push-Pull	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	100 µin	2.54 µm	40	Through Hole	Solder	0.222 "	5.64 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm			Keying Slot	0.05 in	1.27 mm	125 VAC	Header	All	0.094 in	2.4 mm	Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin		Flash
3M (TC) 45240-200230	Push-Pull	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	200 µin	5.08 µm	40	Surface Mount	Solder	0.222 "	5.64 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	3 µin	0.076 µm	Keying Slot Pick and Place	0.05 in	1.27 mm	125 VAC	Header	All			Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin
3M (TC) 45240-500200	Push-Pull	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	100 µin	2.54 µm	40	Through Hole Right Angle	Solder	0.21 in	5.33 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm			Keying Slot	0.05 in	1.27 mm	125 VAC	Header	All	0.094 in	2.4 mm	Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin		Flash
3M (TC) 45240-220200	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	UL94 V-0	Gold	Square	2	100 µin	2.54 µm	40	Surface Mount	Solder	0.222 "	5.64 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm			Keying Slot Pick and Place	0.05 in	1.27 mm	125 VAC	Header	All			Board to Cable/Wire	Male Pin	Copper Alloy	125 °C	-65 ░C	Tin		Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 8.31
		500	$ 7.81
		750	$ 7.30
		1250	$ 6.90
	Cut Tape (CT)	1	$ 11.58
		10	$ 10.43
		100	$ 9.32
	Digi-Reel®	1	$ 11.58
		10	$ 10.43
		100	$ 9.32

Description

General part information

45240 Series

Connector Header Surface Mount 40 position 0.050" (1.27mm)

Documents

Technical documentation and resources
