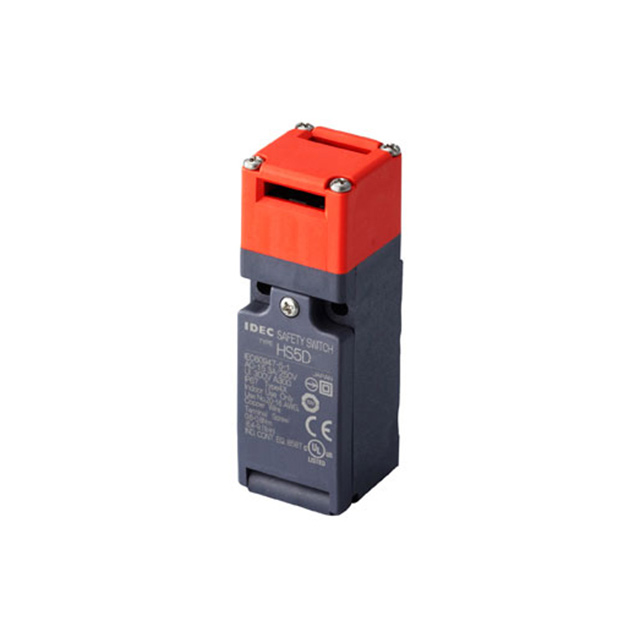

HS5D-02RN

Active

IDEC Corporation

SAFETY INTERLOCK SWITCH, DPST-NC, SCREW, 250 V, 10 A

Search across all available documentation for this part.

Active

IDEC Corporation

SAFETY INTERLOCK SWITCH, DPST-NC, SCREW, 250 V, 10 A

Technical Specifications

Parameters and characteristics commom to parts in this series

Interlock Switches Safety Switch Metal Head 2NC

Part	Voltage Rating	Current Rating (Amps)	Conduit Thread Size	Type	Termination Style	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Ingress Protection	Holding Force
IDEC Corporation HS5D-02ZRNP
IDEC Corporation HS5D-11RN	30 VDC, 125 VAC	2.5 A	G1/2	Non-Locking	Screw Terminal	DPST-NO/NC	Panel Disconnect	70 °C	-30 ░C	CCC, CE, cULus, TUV	IP67 - Dust Tight, Waterproof	6 kgf
IDEC Corporation HS5D-02RN	30 VDC, 125 VAC	2.5 A	G1/2	Non-Locking	Screw Terminal	DPST-NC	Panel Disconnect	70 °C	-30 ░C	CCC, CE, cULus, TUV	IP67 - Dust Tight, Waterproof	5 kgf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Interlock Switches Safety Switch Metal Head 2NC
