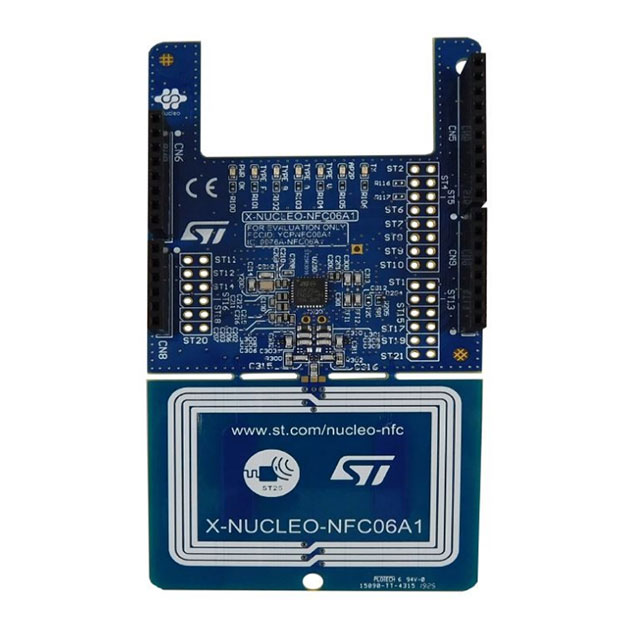

X-NUCLEO-NFC06A1
ActiveNFC CARD READER EXPANSION BOARD BASED ON ST25R3916 FOR STM32 AND STM8 NUCLEOS
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-NFC06A1
ActiveNFC CARD READER EXPANSION BOARD BASED ON ST25R3916 FOR STM32 AND STM8 NUCLEOS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-NFC06A1 | X-NUCLEO-NFC06A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Near Field Communication (NFC) | Near Field Communication (NFC) |
| Platform | Nucleo | Nucleo |
| Type | RF | RF |
| Utilized IC / Part | ST25R3916 | ST25R3916 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
X-NUCLEO-NFC06A1 Series
NFC card reader expansion board based on ST25R3916 for STM32 and STM8 Nucleos
| Part | Platform | Contents | Function | Utilized IC / Part | Type |
|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-NFC06A1 | |||||
STMicroelectronics X-NUCLEO-NFC06A1 | Nucleo | Board(s) | Near Field Communication (NFC) | ST25R3916 | RF |
Description
General part information
X-NUCLEO-NFC06A1 Series
The X-NUCLEO-NFC06A1 NFC card reader expansion board is based on the ST25R3916 device.
The expansion board is configured to support ISO14443A/B, ISO15693, FeliCa™ and AP2P communication.
The ST25R3916 manages frame coding and decoding in reader mode for standard applications, such as NFC, proximity and vicinity HF RFID standards. It supports ISO/IEC 14443 Type A and B, ISO/IEC 15693 (single subcarrier only) and ISO/IEC 18092 communication protocols as well as the detection, reading and writing of NFC Forum Type 1, 2, 3, 4 and 5 tags.
