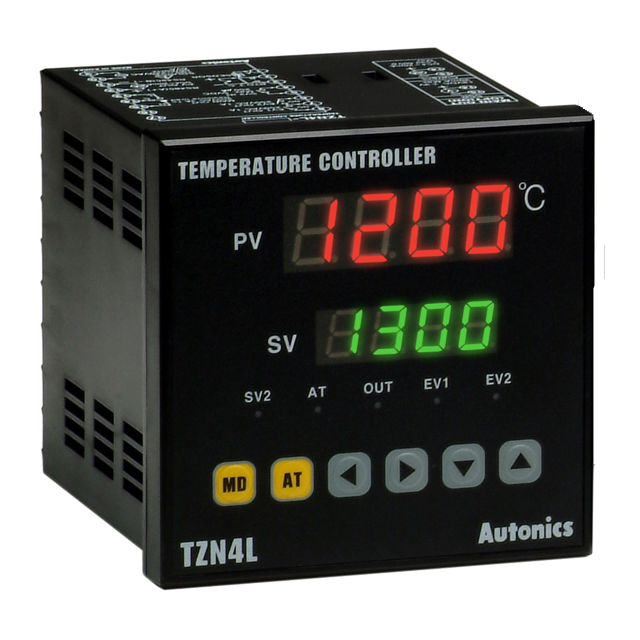

TZN4L-14R

Active

AUTONICS

PID CONTROL RELAY 100-240VAC

Search across all available documentation for this part.

Active

AUTONICS

PID CONTROL RELAY 100-240VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TZN4L-14R	TZN4L Series

Control Method	On/Off, Proportional (PID)	On/Off, Proportional (PID)
Display Type	LED - Green, Red Characters	LED - Green, Red Characters
Features	Option Cards Available	Option Cards Available
Number of Characters Per Row	4	4
Number of Characters Per Row	4	4
Output Type	-	Analog, Solid State
Panel Cutout Dimensions [x]	92 mm	92 mm
Panel Cutout Dimensions [y]	92 mm	92 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Temperature Controller (RTD, Type E, J, K, N, R, S, T, W)	Temperature Controller (RTD, Type E, J, K, N, R, S, T, W)
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

PID CONTROL RELAY 100-240VAC

Part	Number of Characters Per Row	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Control Method	Display Type	Termination Style	Features	Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Output Type
AUTONICS TZN4L-14R	4	4	100 VAC	240 VAC	On/Off, Proportional (PID)	LED - Green, Red Characters	Screw Terminal	Option Cards Available	Temperature Controller (RTD, Type E, J, K, N, R, S, T, W)	92 mm	92 mm
AUTONICS TZN4L-24C	4	4	100 VAC	240 VAC	On/Off, Proportional (PID)	LED - Green, Red Characters	Screw Terminal	Option Cards Available	Temperature Controller (RTD, Type E, J, K, N, R, S, T, W)	92 mm	92 mm	Analog
AUTONICS TZN4L-A4R	4	4	100 VAC	240 VAC	On/Off, Proportional (PID)	LED - Green, Red Characters	Screw Terminal	Option Cards Available	Temperature Controller (RTD, Type E, J, K, N, R, S, T, W)	92 mm	92 mm
AUTONICS TZN4L-24S	4	4	100 VAC	240 VAC	On/Off, Proportional (PID)	LED - Green, Red Characters	Screw Terminal	Option Cards Available	Temperature Controller (RTD, Type E, J, K, N, R, S, T, W)	92 mm	92 mm	Solid State

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 183.00

General part information

Temperature Controller (RTD, Type E, J, K, N, R, S, T, W) 100 ~ 240VAC Panel Mount
