31-10-RFX

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage Rating	Includes	Insertion Loss	Center Contact Material	Impedance	Body Material	Number of Ports	Fastening Type	Housing Color	Shield Termination	Mounting Feature	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Mating Cycles	Body Finish	Dielectric Material	Color	For Use With/Related Products	Accessory Type
Amphenol RF 31-10-75	Isolated	500 V	1 Connector 1 Lockwasher 1 Nut	0.2 dB	Phosphor Bronze	75 Ohms	Brass	1	Bayonet Lock	Silver White	Solder	Bulkhead - Rear Side Nut	4 GHz	Solder Cup	Gold	-65 ░C	165 °C	Female Socket Jack	BNC	500	Nickel
Amphenol RF 31-10	Isolated	500 V	1 Connector 1 Lockwasher 1 Nut	0.2 dB	Phosphor Bronze	50 Ohms	Brass	1	Bayonet Lock	Silver White	Solder	Bulkhead - Rear Side Nut	4 GHz	Solder Cup	Silver	-55 °C	85 °C	Female Socket Jack	BNC	500	Nickel
Amphenol RF 31-102	Extended Insulation	500 V	1 Connector 1 Gasket 1 Lockwasher 1 Nut	0.2 dB	Beryllium Copper Brass	50 Ohms	Brass	1	Bayonet Lock	Silver	Solder	Bulkhead - Rear Side Nut	4 GHz	Solder Cup	Silver	-65 ░C	165 °C	Female Socket Jack	BNC	500	Nickel	Polytetrafluoroethylene (PTFE)
Amphenol RF 31-10152-RFX							Brass												BNC		Tin		Silver	BNC Jacks	Solder Tag
Amphenol RF 31-10-RFX	Isolated	500 V	1 Connector 1 Lockwasher 1 Nut	0.2 dB	Phosphor Bronze	50 Ohms	Brass	1	Bayonet Lock	Silver White	Solder	Bulkhead - Rear Side Nut	4 GHz	Solder Cup	Silver	-65 ░C	165 °C	Female Socket Jack	BNC	500	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

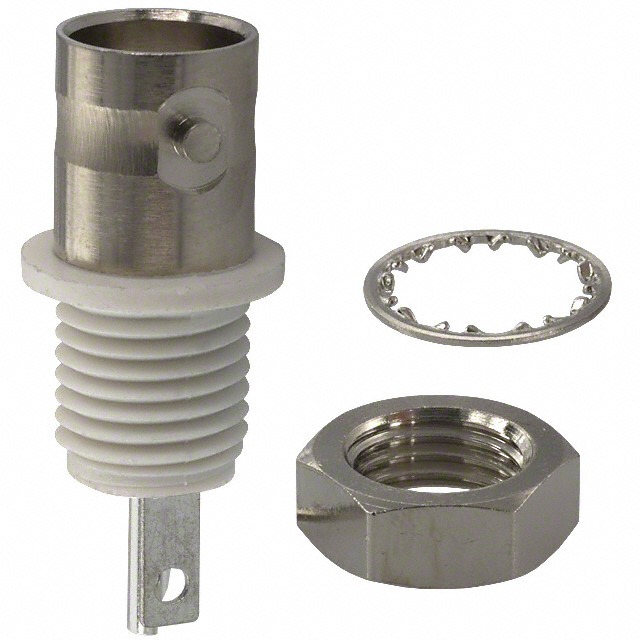

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
