42R42-3151-250

Active

Power Dynamics, Inc.

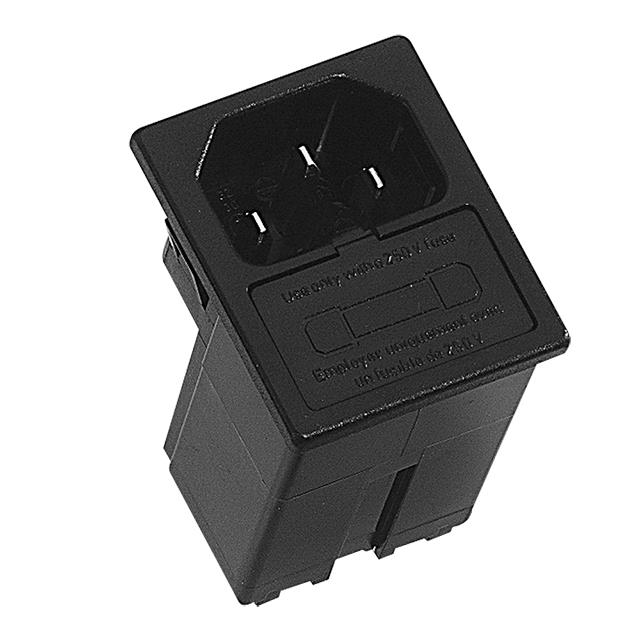

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	42R42-3151-250

Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Female Sockets
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.9 mm
Panel Cutout Dimensions [y]	31.4 mm
Panel Thickness [x]	2.5 mm
Panel Thickness [x]	0.098 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Panel Thickness [x]	Panel Thickness [x]	Mounting Type	Connector Style	Connector Type	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Material Flammability Rating
Power Dynamics, Inc. 42R42-3151-250	2.5 mm	0.098 in	Panel Mount, Snap-In	IEC 320-C14	Receptacle, Female Sockets	0.25 in	6.3 mm	Quick Connect	31.4 mm	27.9 mm	CSA, UL, VDE	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources
