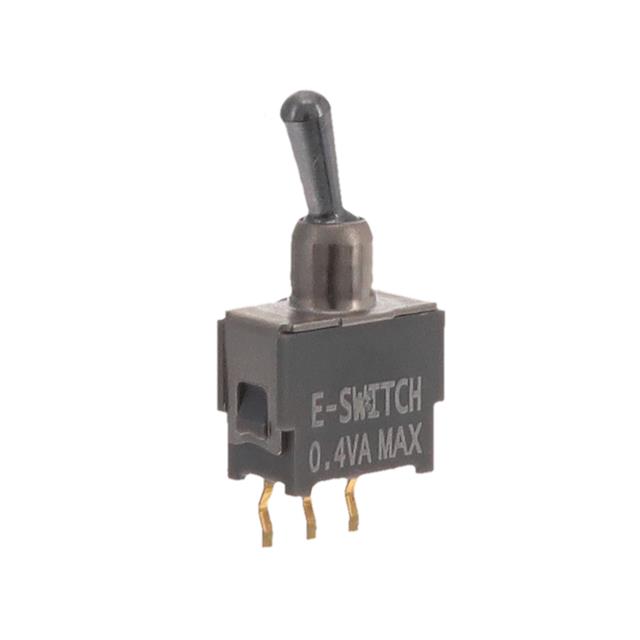

200RSP1T1B1M2R

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 48V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200RSP1T1B1M2R	200RSP1 Series

Actuator Length [x]	6 mm	6 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 VA
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	48 V	48 V
Voltage Rating - DC	48 V	48 V

SWITCH TOGGLE SPDT 0.4VA 48V

Part	Termination Style	Ingress Protection	Circuit	Bushing Thread	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Actuator Type	Mounting Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Actuator Length [x]
E-Switch 200RSP1T1B1M2R	PC Pin	IP67 - Dust Tight, Waterproof	SPDT	Unthreaded	0.4 VA	48 V	On-On	Standard Round	Through Hole	48 V	-30 ░C	85 °C	Non-Illuminated	6 mm
E-Switch 200RSP1T1B1M6R	PC Pin	IP67 - Dust Tight, Waterproof	SPDT	Unthreaded	0.4 VA	48 V	On-On	Standard Round	Through Hole, Right Angle	48 V	-30 ░C	85 °C	Non-Illuminated	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole
