R180415007

Active

Radiall USA, Inc.

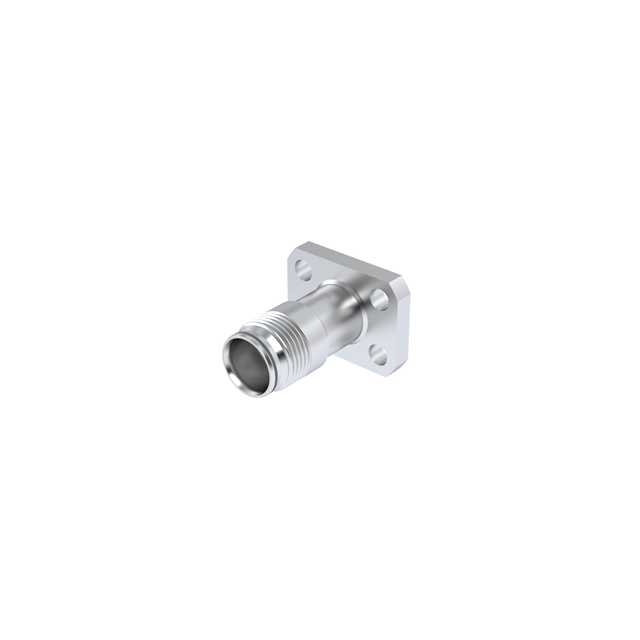

NEX 10 F STR SQFP SD.085 C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

NEX 10 F STR SQFP SD.085 C50

Technical Specifications

Parameters and characteristics for this part

Specification	R180415007

Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	NEX10
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	20 GHz
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Center Contact Material	Contact Termination	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Dielectric Material	Housing Color	Number of Ports	Cable Group	Connector Style	Voltage Rating	Body Finish	Shield Termination	Ingress Protection	Connector Type	Center Contact Plating	Body Material	Impedance
Radiall USA, Inc. R180415007W	Beryllium Copper	Solder	Flange	-55 °C	125 °C	20 GHz	Polytetrafluoroethylene (PTFE)	Silver	1	RG-405 (.085" Semi Rigid)	NEX10	335 V	White Bronze	Solder	IP68 - Dust Tight Waterproof	Female Socket Jack	Silver	Brass	50 Ohms
Radiall USA, Inc. R180415007	Beryllium Copper	Solder	Flange	-55 °C	125 °C	20 GHz	Polytetrafluoroethylene (PTFE)		1	RG-405 (.085" Semi Rigid)	NEX10	335 V		Solder		Female Socket Jack	Silver	Brass	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NEX10 Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
