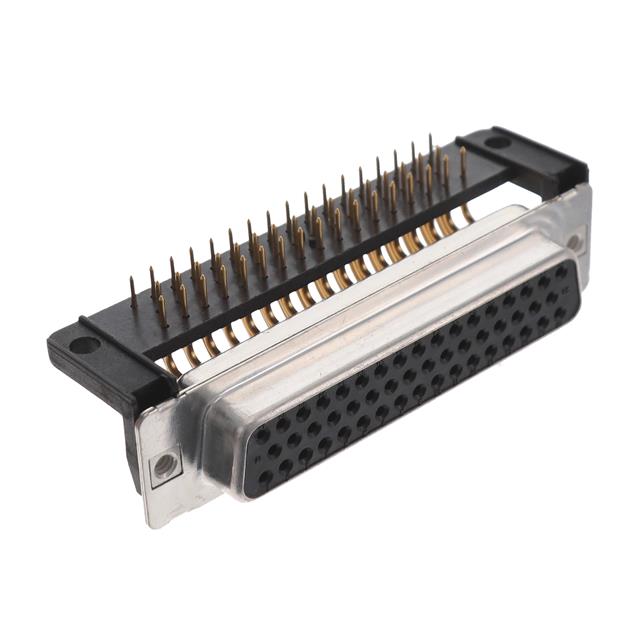

164A10759X

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Current Rating (Amps)	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Shell Size, Connector Layout	Connector Style	Contact Material	Connector Type	Color	Number of Rows	Number of Positions	Dielectric Material	Voltage Rating	Termination	Flange Feature	Backset Spacing	Backset Spacing	Material Flammability Rating	Shell Size, Connector Layout
Amphenol CONEC 164A10709X	Signal	7.5 A	Through Hole Right Angle	Mounting Brackets	-55 °C	125 °C	Gold	5	D-Sub	Copper Alloy	Receptacle Female Sockets	Black	3	50	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Solder	Housing/Shell (Unthreaded)	9.4 mm	0.37 in	UL94 V-0
Amphenol CONEC 164A10729X	Signal		Through Hole Right Angle	Mounting Brackets				2	D-Sub		Receptacle Female Sockets		2	15			Solder	Housing/Shell (4-40)	9.4 mm	0.37 in
Amphenol CONEC 164A10749X	Signal		Through Hole Right Angle	Mounting Brackets					D-Sub		Receptacle Female Sockets		2	37			Solder	Housing/Shell (4-40)	9.4 mm	0.37 in		4 (DC C)
Amphenol CONEC 164A10759X	Signal		Through Hole Right Angle	Mounting Brackets	-55 °C	125 °C	Gold	5	D-Sub		Receptacle Female Sockets		3	50			Solder	Housing/Shell (4-40)	9.4 mm	0.37 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 23.28

General part information

50 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available
