787171-5

Active

TE Connectivity AMP Connectors

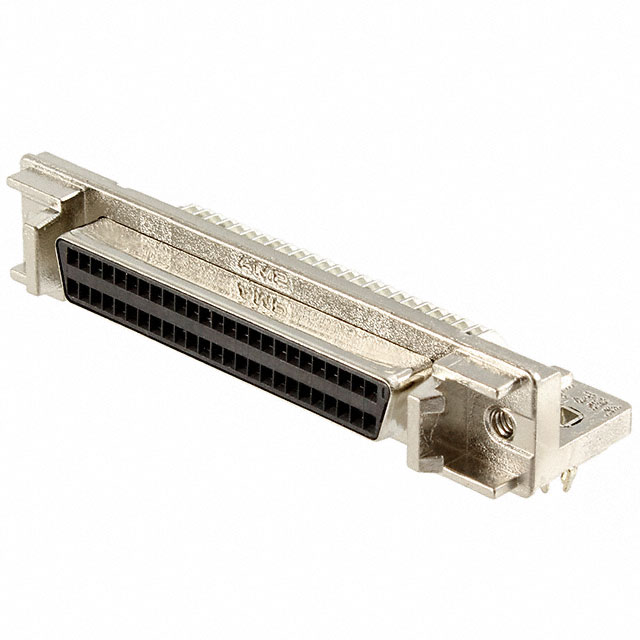

CONN D-TYPE RCPT 50POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 50POS R/A SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	787171-5	787171 Series

Backset Spacing	3.71 mm	3.71 mm
Backset Spacing	0.146 in	0.146 in
Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Thermoplastic	Thermoplastic
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	Latchblocks, Housing/Shell (2-56), Rails	Latchblocks, Housing/Shell (2-56), Rails
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Positions	50	50 - 100
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

CONN D-TYPE RCPT 100POS R/A SLDR

Part	Features	Color	Contact Material	Connector Style	Termination	Backset Spacing	Backset Spacing	Contact Type	Shell Material, Finish	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Connector Type	Number of Positions	Dielectric Material	Mounting Type	Flange Feature	Material Flammability Rating	Number of Rows	Contact Finish
TE Connectivity AMP Connectors 787171-9	Board Lock, Shielded	Black	Phosphor Bronze	D-Type	Solder	3.71 mm	0.146 in	Signal	Nickel Plated, Steel	30 VDC	105 ░C	-55 °C	0.05	0.1	Receptacle, Female Sockets	100	Thermoplastic	Board Edge, Right Angle, Through Hole	Housing/Shell (2-56), Latchblocks, Rails	UL94 V-0	2	Gold
TE Connectivity AMP Connectors 787171-7	Board Lock, Shielded	Black	Phosphor Bronze	D-Type	Solder	3.71 mm	0.146 in	Signal	Nickel Plated, Steel	30 VDC	105 ░C	-55 °C	0.05	0.1	Receptacle, Female Sockets	68	Thermoplastic	Board Edge, Right Angle, Through Hole	Housing/Shell (2-56), Latchblocks, Rails	UL94 V-0	2	Gold
TE Connectivity AMP Connectors 787171-5	Board Lock, Shielded	Black	Phosphor Bronze	D-Type	Solder	3.71 mm	0.146 in	Signal	Nickel Plated, Steel	30 VDC	105 ░C	-55 °C	0.05	0.1	Receptacle, Female Sockets	50	Thermoplastic	Board Edge, Right Angle, Through Hole	Housing/Shell (2-56), Latchblocks, Rails	UL94 V-0	2	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Type Receptacle, Female Sockets Connector
