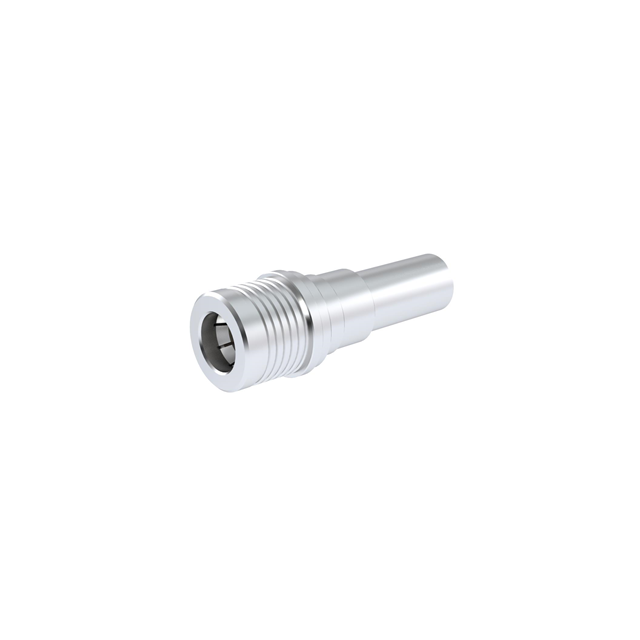

R123096110

Active

Radiall USA, Inc.

QMA / STRAIGHT PLUG FULL CRIMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA / STRAIGHT PLUG FULL CRIMP T

Technical Specifications

Parameters and characteristics for this part

Specification	R123096110

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-200
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Housing Color	Fastening Type	Connector Type	Cable Group	Body Material	Center Contact Material	Dielectric Material	Number of Ports	Body Finish	Center Contact Plating	Frequency - Max [Max]	Voltage Rating	Shield Termination	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination
Radiall USA, Inc. R123096110	Silver	Snap-On	Male Pin Plug	LMR-200	Brass	Brass	Polytetrafluoroethylene (PTFE)	1	White Bronze	Gold	6000 MHz	335 V	Crimp	Free Hanging (In-Line)	50 Ohms	-40 °C	80 C	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.06

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
