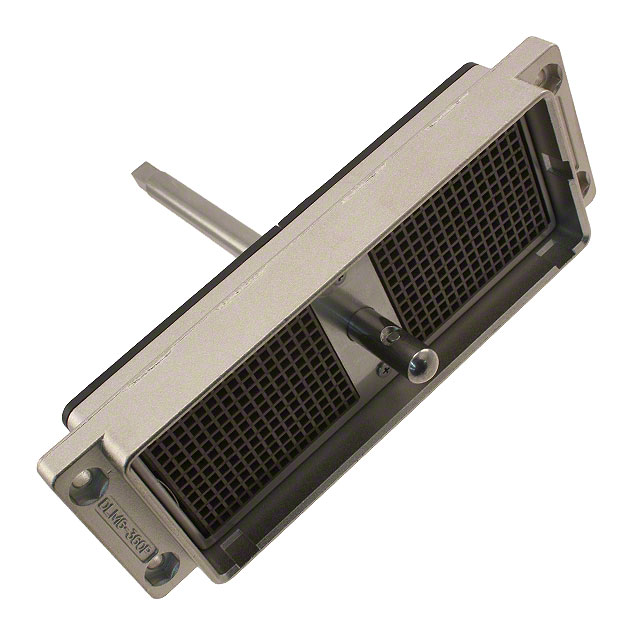

DLM6-360P

Active

ITT Cannon, LLC

CONN PLUG HSG DRAWER 360POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG HSG DRAWER 360POS

Technical Specifications

Parameters and characteristics for this part

Specification	DLM6-360P

Connector Style	Drawer
Connector Type	Hermaphroditic Contacts, Plug
Connector Usage	Plug
Features	Actuating Camshaft
Note	Contacts Not Included
Number of Positions	360
Number of Rows	12
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Material Flammability Rating	Features	Color	Number of Rows	Contact Finish	Mounting Type	Termination	Pitch [x]	Pitch [x]	Number of Columns	Connector Usage	Note	Connector Style
ITT Cannon, LLC DLM6-360PW6A	105 ░C	-55 °C	Hermaphroditic Contacts Plug	360	50 µin	1.27 µm	All	UL94 V-0	Actuating Camshaft Shielding Zero Insertion Force (ZIF)	Black	12	Gold	Through Hole	Solder	2.54 mm	0.1 in	30
ITT Cannon, LLC DLM6-360P			Hermaphroditic Contacts Plug	360					Actuating Camshaft		12				2.54 mm	0.1 in		Plug	Contacts Not Included	Drawer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

360 Position Plug, Hermaphroditic Contacts Connector Panel Mount Drawer
