S36SE05003NDFG

Active

Delta Electronics

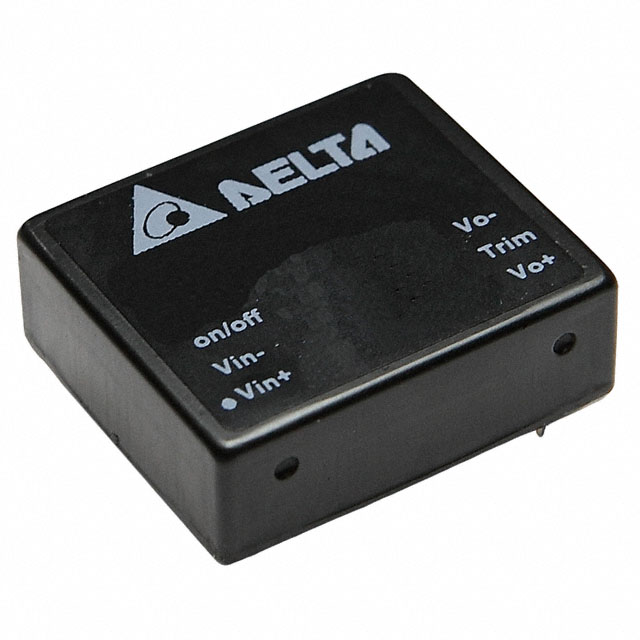

DC DC CONVERTER 5V 17W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S36SE05003NDFG

Active

Delta Electronics

DC DC CONVERTER 5V 17W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 24.45
		5	$ 24.27
		10	$ 24.08
		30	$ 23.70
		50	$ 22.57
		100	$ 20.69
		250	$ 20.32

Description

General part information

S36SE Series

Isolated Module DC DC Converter 1 Output 5V 3A 18V - 75V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S36SE05003NDFG	S36SE Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	3 A	2 - 5 A
Efficiency	83.5 %	83.5 - 87 %
Features	Remote On/Off, UVLO	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 - 123 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-DIP Module	6-SMD Module, 1x1 Brick, 6-DIP Module
Power (Watts)	17 W	17 - 25 W
Size / Dimension [x]	27.9 mm	27.9 mm
Size / Dimension [x]	1.1 "	1.1 "
Size / Dimension [y]	24.4 mm	24.4 mm
Size / Dimension [y]	0.96 in	0.96 in
Size / Dimension [z]	8.7 mm	8.7 mm
Size / Dimension [z]	0.34 in	0.34 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	18 V	18 - 36 V
Voltage - Isolation	1.5 kV	1.5 - 2250 VDC
Voltage - Output 1	5 V	3.3 - 12 V

S36SE Series

DC DC CONVERTER 3.3V 17W

Part	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Power (Watts)	Efficiency	Features	Voltage - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Package / Case	Applications	Control Features
Delta Electronics S36SE3R305NMFB	5 A	Surface Mount	24.4 mm	8.7 mm	27.9 mm	0.34 in	1.1 "	0.96 in	18 V	2250 VDC	Isolated Module	17 W	86.5 %	OCP, OTP, OVP, Remote On/Off, UVLO	3.3 V	1	123 °C	-40 °C	75 V	6-SMD Module, 1x1 Brick	ITE (Commercial)	Active Low, Enable
Delta Electronics S36SE12002PRFZ	2 A	Through Hole	24.4 mm	8.7 mm	27.9 mm	0.34 in	1.1 "	0.96 in	36 V	2250 VDC	Isolated Module	25 W	87 %	OCP, OTP, OVP, Remote On/Off, UVLO	12 V	1	123 °C	-40 °C	75 V	6-DIP Module	ITE (Commercial)	Active High, Enable
Delta Electronics S36SE3R305NRFB	5 A	Through Hole	24.4 mm	8.7 mm	27.9 mm	0.34 in	1.1 "	0.96 in	18 V	2250 VDC	Isolated Module	17 W	86.5 %	OCP, OTP, OVP, Remote On/Off, UVLO	3.3 V	1	123 °C	-40 °C	75 V	6-DIP Module	ITE (Commercial)	Active Low, Enable
Delta Electronics S36SE05003NRFB	3 A	Through Hole	24.4 mm	8.7 mm	27.9 mm	0.34 in	1.1 "	0.96 in	18 V	2250 VDC	Isolated Module	17 W	83.5 %	OCP, OTP, OVP, Remote On/Off, UVLO	5 V	1			75 V	6-DIP Module	ITE (Commercial)	Active Low, Enable
Delta Electronics S36SE05003NDFG	3 A	Through Hole	24.4 mm	8.7 mm	27.9 mm	0.34 in	1.1 "	0.96 in	18 V	1.5 kV	Isolated Module	17 W	83.5 %	Remote On/Off, UVLO	5 V	1	85 °C	-40 °C	75 V	6-DIP Module	ITE (Commercial)	Active Low, Enable
