Specification	XP0250100L

Current - Collector (Ic) (Max)	0.1 mA
Current - Collector Cutoff (Max)	100 µA
DC Current Gain (hFE) (Min)	160
Frequency - Transition	150 MHz
Mounting Type	Surface Mount
NPN Count	2
Operating Temperature	150 °C

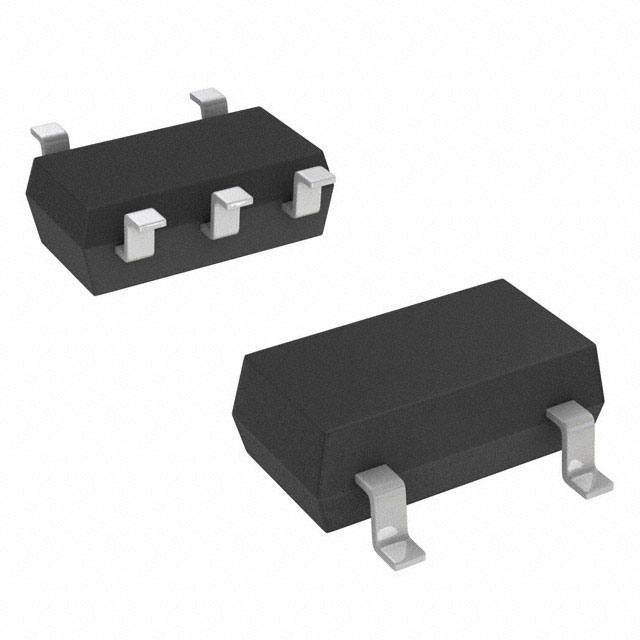

Package / Case	SOT-353, SC-70-5, 5-TSSOP
Package Name	SMini5-G1
Power - Max	150 mW
Transistor Configuration	Dual
Transistor Type	NPN
Vce Saturation (Max)	300 mV
Voltage - Collector Emitter Breakdown (Max)	50 V

XP0250 Series

Part	Mounting Type	Package / Case	Power - Max	DC Current Gain (hFE) (Min)	Frequency - Transition	Package Name	Vce Saturation (Max)	Operating Temperature	NPN Count	Transistor Type	Transistor Configuration	Current - Collector Cutoff (Max)	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)
Panasonic Electronic Components XP0250100L	Surface Mount	5-TSSOP SC-70-5 SOT-353	150 mW	160	150 MHz	SMini5-G1	300 mV	150 °C	2	NPN	Dual	100 µA	50 V	0.1 mA
