B2(3X) 50/17 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1.968" BLACK FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Products Datasheet Datasheet

B2(3X) 50/17 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1.968" BLACK FOOT

Deep-Dive with AI

DocumentsHeat Shrink Products Datasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 9.05
		2	$ 8.32
		3	$ 7.92
		5	$ 7.45
		7	$ 7.15
		10	$ 6.85
		25	$ 6.13
		50	$ 5.64
		100	$ 5.19

Description

General part information

B2(3X) Series

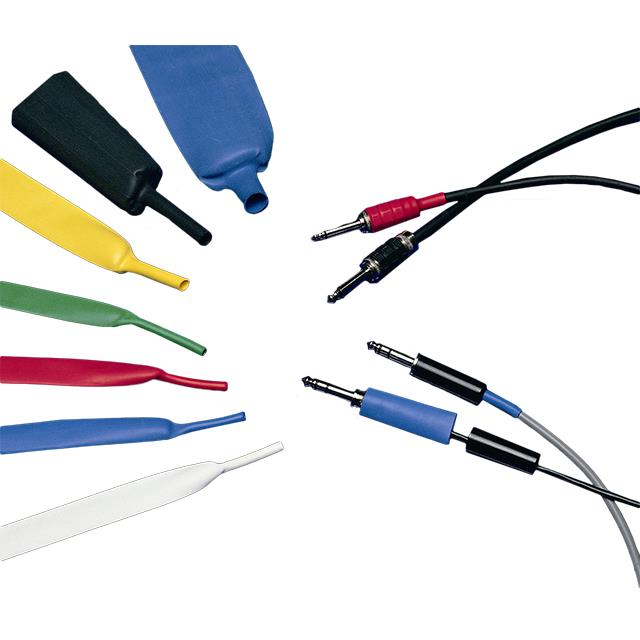

Heat Shrink Tubing, Flexible 2.000" (50.80mm) 3 to 1 Black Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Heat Shrink Products Datasheet

Datasheet

Specification	B2(3X) 50/17 BLACK SPL	B2(3X) Series

Color	Black	Black, White
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered	-	5.99 - 13 mm
Inner Diameter - Recovered	-	0.236 - 0.512 in
Inner Diameter - Recovered [diameter]	17 mm	0.51 - 25.4 mm
Inner Diameter - Recovered [diameter]	0.67 in	0.02 - 1 in
Inner Diameter - Supplied	-	40.01 mm
Inner Diameter - Supplied [diameter]	50.8 mm	1.5 - 76.2 mm
Inner Diameter - Supplied [diameter]	2 in	0.059 - 3 in
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	1.5 mm	0.024 - 1.65 mm
Recovered Wall Thickness	0.059 in	0.02 - 0.065 in
Recovered Wall Thickness	-	0.61 mm
Shrink Temperature	90 °C	90 °C
Shrinkage Ratio [Max]	3	3
Shrinkage Ratio [Min]	1	1
Spool Size	600 '	200 - 1000.7 '
Spool Size	182.9 m	61 - 305 m
Type	Tubing, Flexible	Tubing, Flexible

Part

Spool Size

Inner Diameter - Supplied [diameter]

Shrink Temperature

Features

Color

Inner Diameter - Recovered [diameter]

Material

Type

Shrinkage Ratio [Min]

Shrinkage Ratio [Max]

Operating Temperature [Max]

Operating Temperature [Min]

Length

Recovered Wall Thickness

Inner Diameter - Recovered

Inner Diameter - Supplied [diameter]

Recovered Wall Thickness

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 50/17 BLACK SPL

600 '

182.9 m

50.8 mm

2 in

90 °C

Flame Retardant

Black

17 mm

0.67 in

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

1.5 mm

0.059 in

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 40/13 BLACK SPL

200 '

61 m

1.575 "

90 °C

Flame Retardant

Black

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

1.24 mm

0.049 "

13 mm

0.512 in

40.01 mm

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 18/6 WHITE SPL

200 '

61 m

18.01 mm

0.709 in

90 °C

Flame Retardant

White

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

0.99 mm

0.039 in

5.99 mm

0.236 in

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 3/1 BLACK SPL

500.3 ft

152.5 m

3 mm

0.118 in

90 °C

Flame Retardant

Black

0.99 mm

0.039 in

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

0.024 in

0.61 mm

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 24/8 BLACK SPL

200 '

61 m

24 mm

0.945 "

90 °C

Flame Retardant

Black

8 mm

0.315 in

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

1.19 mm

0.047 "

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 12/4 BLACK SPL

200 '

61 m

11.99 mm

0.472 in

90 °C

Flame Retardant

Black

3.99 mm

0.157 in

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

0.84 mm

0.033 in

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 18/6 BLACK SPL

200 '

61 m

18.01 mm

0.709 in

90 °C

Flame Retardant

Black

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

0.99 mm

0.039 in

5.99 mm

0.236 in

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 1.5/0.5 BLACK SPL

1000.7 ft

305 m

1.5 mm

0.059 in

90 °C

Flame Retardant

Black

0.51 mm

0.02 in

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

0.51 mm

0.02 in

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 6/2 BLACK SPL

200 '

61 m

5.99 mm

0.236 in

90 °C

Flame Retardant

Black

2.03 mm

0.08 in

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

0.71 mm

0.028 "

Sumitomo Electric Interconnect Products, Inc.

B2(3X) 24/8 WHITE SPL

200 '

61 m

24 mm

0.945 "

90 °C

Flame Retardant

White

8 mm

0.315 in

Polyolefin (PO), Irradiated

Tubing, Flexible

135 °C

-55 °C

Enter Number of Feet in Order Quantity

1.19 mm

0.047 "
