1-967242-1
ActiveTE Connectivity AMP Connectors

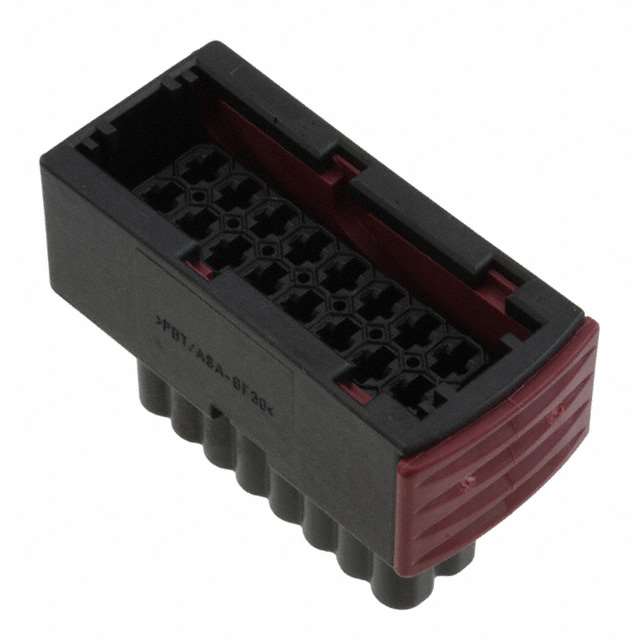

CONN RCPT HSG 16POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967242-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 16POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967242-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing [Max] | 0.236 in |
| Row Spacing [Max] | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.88 | |
| 10 | $ 2.57 | |||
| 25 | $ 2.55 | |||
| 50 | $ 2.53 | |||
| 100 | $ 2.30 | |||
967242 Series
CONN RCPT HSG 16POS 5.00MM
| Part | Connector Type | Number of Positions | Row Spacing [Max] | Row Spacing [Max] | Color | Pitch [x] | Pitch [x] | Contact Type | Mounting Type | Number of Rows | Note | Contact Termination | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967242-1 | Receptacle | 16 | 0.236 in | 6 mm | Black | 5 mm | 0.197 in | Female Socket | Free Hanging (In-Line) | 2 | Contacts Not Included | Crimp | Polybutylene Terephthalate (PBT), Glass Filled |
Description
General part information
967242 Series
16 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
