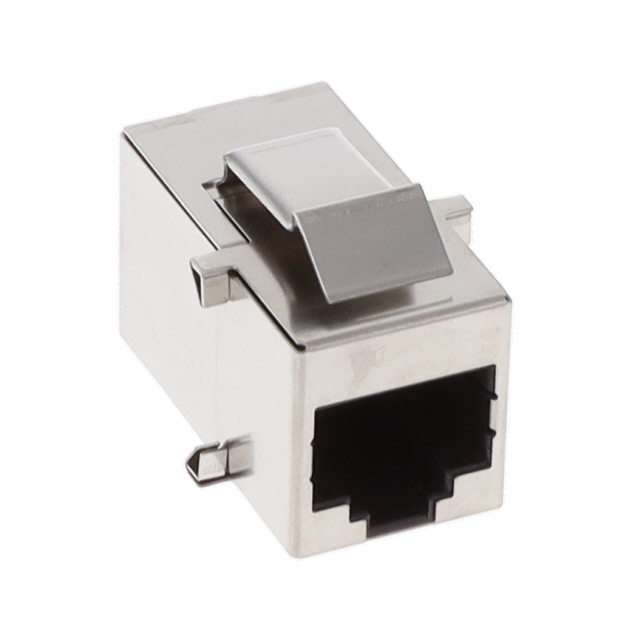

KLAPX-CPLR-S-88

Active

Kycon, Inc.

COUPLER RJ45 8P8C SHIELDED WITH

Search across all available documentation for this part.

Active

Kycon, Inc.

COUPLER RJ45 8P8C SHIELDED WITH

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Type	Contact Finish Thickness	Contact Finish Thickness	Shield Material	Contact Finish	Ratings	Convert From (Adapter End)	Contact Material	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Finish Thickness	Mounting Type
Kycon, Inc. KLAPX-CPLR-S-88-50	Shielded	Coupler	50 µin	1.27 µm	Stainless Steel	Gold	Cat6	Jack 8p8c (RJ45)	Phosphor Bronze	8p8c (RJ45) Jack	85 °C	-40 °C	Polyester
Kycon, Inc. KLAPX-CPLR-N-88	Unshielded	Coupler				Gold		Jack 8p8c (RJ45)	Phosphor Bronze	8p8c (RJ45) Jack	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	Flash
Kycon, Inc. KLAPX-CPLR-S-88-C5E	Shielded	Coupler	30 Áin	0.76 Ám	Stainless Steel	Gold	Cat5e	Jack 8p8c (RJ45)	Phosphor Bronze	8p8c (RJ45) Jack			Polybutylene Terephthalate (PBT)
Kycon, Inc. KLAPX-CPLR-N-88-C6	Unshielded	Coupler	50 µin	1.27 µm		Gold	Cat6	Jack 8p8c (RJ45)	Phosphor Bronze	8p8c (RJ45) Jack	60 °C	-40 °C	Acrylonitrile Butadiene Styrene (ABS)		Free Hanging (In-Line)
Kycon, Inc. KLAPX-CPLR-S-88	Shielded	Coupler	15 µin	0.38 µm	Stainless Steel	Gold	Cat6	Jack 8p8c (RJ45)	Phosphor Bronze	8p8c (RJ45) Jack	85 °C	-40 °C	Polyester

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat6 Shielded
