PHG.2K.310.CLLC65Z - PHG.2K.310.CLLC65Z

PHG.2K.310.CLLC65Z

Active
LEMO

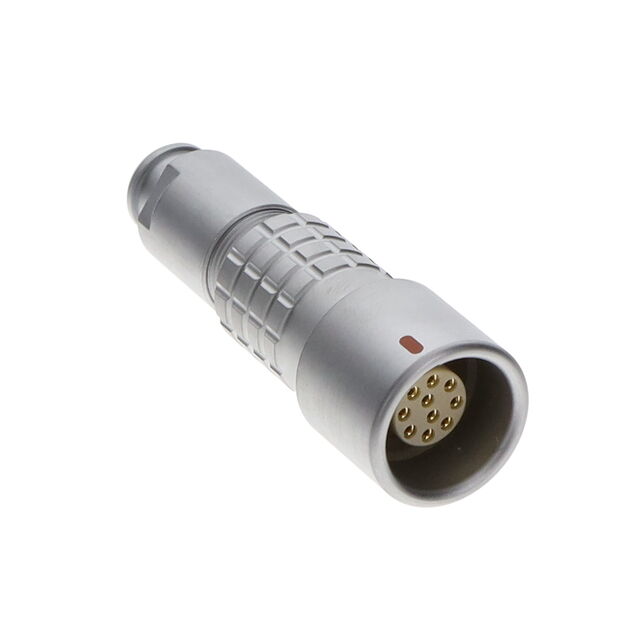

CIRCULAR PUSH PULL CONNECTORS 10P FREE RCPT SOLDER CABLE COLLET 6.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet
PHG.2K.310.CLLC65Z - PHG.2K.310.CLLC65Z

PHG.2K.310.CLLC65Z

Active
LEMO

CIRCULAR PUSH PULL CONNECTORS 10P FREE RCPT SOLDER CABLE COLLET 6.5MM

Deep-Dive with AI

DocumentsDatasheetDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationPHG.2K.310.CLLC65ZPHG.2K Series
Backshell Material, PlatingBrass, ChromeBrass, Chrome
Cable Opening-0.201 - 0.335 in
Cable Opening-5.1 - 8.5 mm
Cable Opening-7 - 8 mm
Cable Opening-4.1 - 9.6 mm
Cable Opening-4.5 - 5 mm
Cable Opening-0.161 - 0.378 in
Cable Opening-0.177 - 0.394 in
Cable Opening-10 mm
Cable Opening-5.5 mm
Cable Opening [Max] [custom]0.256 in0.138 - 0.315 in
Cable Opening [Max] [custom]6.5 mm3.5 - 7.5 mm
Cable Opening [Min] [custom]0.24 in0.122 - 0.299 in
Cable Opening [Min] [custom]6.1 mm3.1 - 7.6 mm
ColorSilverSilver
Connector TypeReceptacle, Female SocketsReceptacle, Female Sockets
Contact Finish - MatingGoldGold
Contact Finish Thickness - Mating59 Áin59 Áin
Contact Finish Thickness - Mating1.5 Ám1.5 Ám
Contact MaterialBronzeBronze
Current Rating (Amps)8 A2 - 25 A
Fastening TypePush-PullPush-Pull
FeaturesBackshellBackshell
Ingress ProtectionIP66/IP68IP66/IP68
Insert MaterialPolyetheretherketone (PEEK)Polyetheretherketone (PEEK)
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeFree Hanging (In-Line)Free Hanging (In-Line)
Number of Positions102 - 26
Number of Positions-16
Operating Temperature [Max]200 °C200 °C
Operating Temperature [Min]-55 °C-55 °C
OrientationGG
Primary MaterialMetalMetal
Shell FinishChromeChrome
Shell MaterialBrassBrass
Shell Size - Insert310302 - 708
ShieldingShieldedShielded
Termination-Crimp

PHG.2K Series

CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS

PartShieldingInsert MaterialShell MaterialContact Finish - MatingBackshell Material, PlatingContact MaterialPrimary MaterialShell Size - InsertCable Opening [custom]Cable Opening [custom]Shell FinishOrientationConnector TypeFeaturesOperating Temperature [Min]Operating Temperature [Max]Fastening TypeMounting TypeContact Finish Thickness - MatingContact Finish Thickness - MatingNumber of PositionsMaterial Flammability RatingIngress ProtectionColorCurrent Rating (Amps)Cable Opening [Max] [custom]Cable Opening [Min] [custom]Cable Opening [Max] [custom]Cable Opening [Min] [custom]TerminationCable Opening [Max] [custom]Cable Opening [Min] [diameter]Cable Opening [Max] [diameter]Cable Opening [Min] [diameter]Cable Opening [Max] [diameter]Cable Opening [Max] [diameter]Number of PositionsCable Opening [custom]
LEMO
PHG.2K.708.CJLC85
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
708
0.319 in, 0.335 in
8.1 mm, 8.5 mm
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
9
UL94 V-0
IP66/IP68
Silver
LEMO
PHG.2K.310.CYMC65
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
310
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
10
UL94 V-0
IP66/IP68
Silver
8 A
0.256 in
0.24 in
6.5 mm
6.1 mm
Crimp
LEMO
PHG.2K.308.CYMK95
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
308
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
8
UL94 V-0
IP66/IP68
Silver
10 A
Crimp
LEMO
PHG.2K.302.CYMC70Z
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
302
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
2
UL94 V-0
IP66/IP68
Silver
25 A
0.276 in
0.26 in
6.6 mm
Crimp
7 mm
LEMO
PHG.2K.312.CYMC80Z
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
312
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
12
UL94 V-0
IP66/IP68
Silver
7 A
0.315 in
0.299 in
7.6 mm
Crimp
8 mm
LEMO
PHG.2K.304.CLLC60Z
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
304
0.22 in, 0.236 in
5.6 mm, 6 mm
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
4
UL94 V-0
IP66/IP68
Silver
15 A
LEMO
PHG.2K.310.CLLC60
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
310
0.22 in, 0.236 in
5.6 mm, 6 mm
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
10
UL94 V-0
IP66/IP68
Silver
8 A
LEMO
PHG.2K.312.CLLK95
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
312
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
12
UL94 V-0
IP66/IP68
Silver
7 A
LEMO
PHG.2K.314.CLLC85
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
314
0.319 in, 0.335 in
8.1 mm, 8.5 mm
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
14
UL94 V-0
IP66/IP68
Silver
6.5 A
LEMO
PHG.2K.319.CLLC75Z
Shielded
Polyetheretherketone (PEEK)
Brass
Gold
Brass, Chrome
Bronze
Metal
319
Chrome
G
Receptacle, Female Sockets
Backshell
-55 °C
200 °C
Push-Pull
Free Hanging (In-Line)
59 Áin
1.5 Ám
19
UL94 V-0
IP66/IP68
Silver
5 A
0.295 in
0.28 in
7.5 mm
7.1 mm
