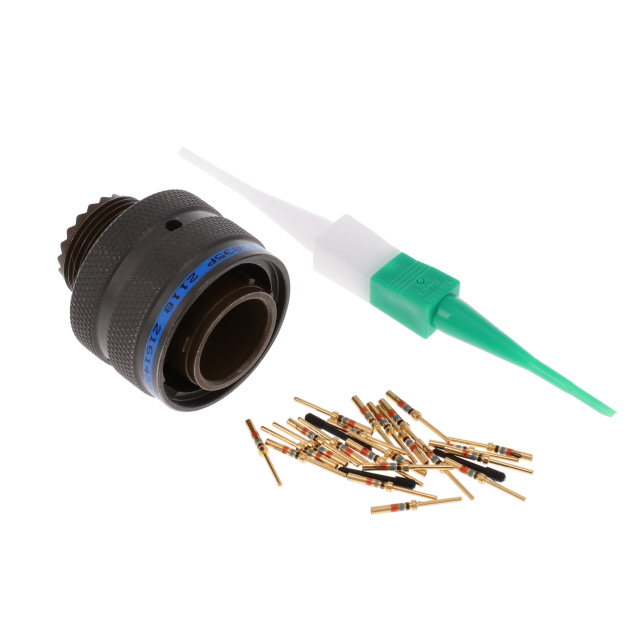

MS27467T13B35P

Active

Amphenol Aerospace Operations

CONN PLUG MALE 22POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS27467T13B35P

Active

Amphenol Aerospace Operations

CONN PLUG MALE 22POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T13B35P

Applications	Military, Aviation
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shielding	Shielded
Termination	Crimp

MS27467T13B Series

Part	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Fastening Type	Shell Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Applications	Connector Type	Shielding	Qualification	Color	Contact Material	Number of Positions	Orientation	Contact Finish - Mating	Grade	Contact Type	Type	Contact Size	Shell Finish	Shell Size, MIL	Shell Size - Insert	Note	Contact Shape	Housing Color
Amphenol Aerospace Operations MS27467T13B35SN	Metal	1.27 µm	50 µin	Free Hanging (In-Line)	35	13	Environment Resistant	Bayonet Lock	Aluminum Alloy	Coupling Nut	-65 ░C	347 °F	Crimp	Aviation Marine Military	Female Sockets Plug	Shielded	MIL-DTL-38999 Series I	Olive Drab	Copper Alloy	22 positions	N	Gold	Military
Amphenol Aerospace Operations MS27467T13B4A				Free Hanging (In-Line)			Environment Resistant	Bayonet Lock	Aluminum Alloy	Coupling Nut	-65 ░C	347 °F			Plug Housing	Shielded	MIL-DTL-38999 Series I			4	N		Military	Crimp	For Male Pins	16	Cadmium	C	13-4	Contacts Not Included	Circular	Olive Drab
Amphenol Aerospace Operations MS27467T13B22S-LC				Free Hanging (In-Line)	22	13	Environment Resistant	Bayonet Lock	Aluminum Alloy	Coupling Nut Ground	-65 ░C	347 °F			Plug Housing	Shielded	MIL-DTL-38999 Series I			22 positions	N		Military	Crimp	For Female Sockets	22 M	Cadmium over Nickel			Contacts Not Included	Circular	Olive Drab
Amphenol Aerospace Operations MS27467T13B35P	Metal	1.27 µm	50 µin	Free Hanging (In-Line)	35	13	Environment Resistant	Bayonet Lock	Aluminum	Coupling Nut	-65 ░C	347 °F	Crimp	Aviation Military	Male Pins Plug	Shielded	MIL-DTL-38999 Series I	Olive Drab	Copper Alloy	22 positions	N	Gold	Military

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 208.49
		10	$ 163.18
		25	$ 148.88
		50	$ 139.25

Description

General part information

MS27467T13B Series

22 Position Circular Connector Plug, Male Pins Crimp
