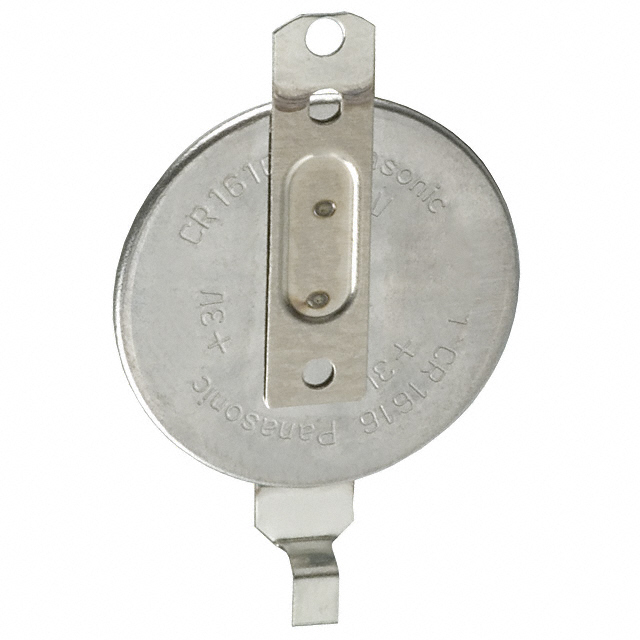

CR-1616/F2N
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V COIN 16MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CR-1616/F2N
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V COIN 16MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR-1616/F2N |
|---|---|
| Battery Cell Size | 16 mm |
| Battery Cell Size | Coin |
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity | 55 mAh |
| Discharge Rate | 100 µA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension | 1.6 mm, 16 mm |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [z] | 0.06 " |
| Termination Style | SMD (SMT) Tab |
| Voltage - Rated | 3 VDC |
| Weight | 1.2 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 20 | $ 1.12 | |||
| 40 | $ 1.06 | |||
| 100 | $ 0.98 | |||
| 300 | $ 0.90 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.82 | |||
| 2500 | $ 0.76 | |||
Description
General part information
CR-1616 Series
Coin, 16.0mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
Documents
Technical documentation and resources
