1-86561-0
ActiveTE Connectivity AMP Connectors

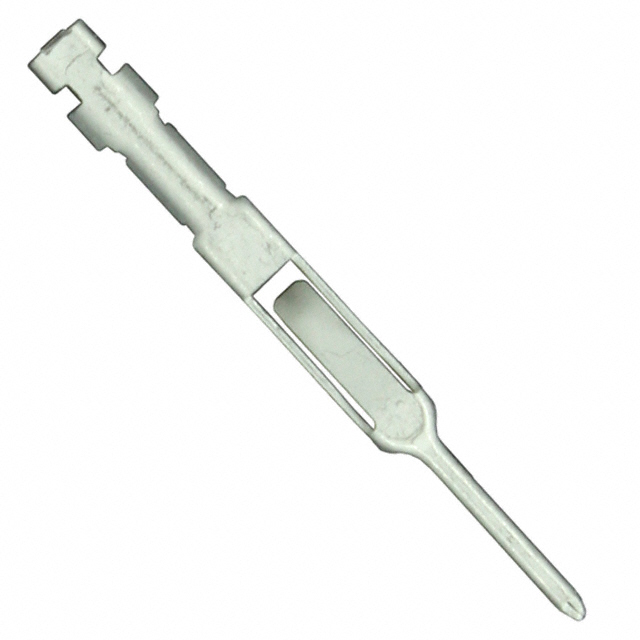

CONTACT FLAT FLEX PIN TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-86561-0
ActiveTE Connectivity AMP Connectors
CONTACT FLAT FLEX PIN TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-86561-0 | 86561 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin-Lead, Tin |
| Contact Finish Thickness | 2.54 µm | 0.38 - 2.54 µm |
| Contact Finish Thickness | 100 µin | 15 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
86561 Series
CONTACT FLAT FLEX PIN GOLD
| Part | Pin or Socket | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 86561-7 | Pin | Gold | 50 µin | 1.27 µm | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 86561-9 | Pin | Tin-Lead | 100 µin | 2.54 µm | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 1-86561-0 | Pin | Tin | 100 µin | 2.54 µm | Crimp | 22 AWG | 26 AWG |
TE Connectivity AMP Connectors 86561-6 | Pin | Gold | 15 µin | 0.38 µm | Crimp | 22 AWG | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.57 | |
| 10 | $ 0.53 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.33 | |||
| 5000 | $ 0.29 | |||
| 10000 | $ 0.28 | |||
Description
General part information
86561 Series
Contact Crimp Pin 22-26 AWG Tin
