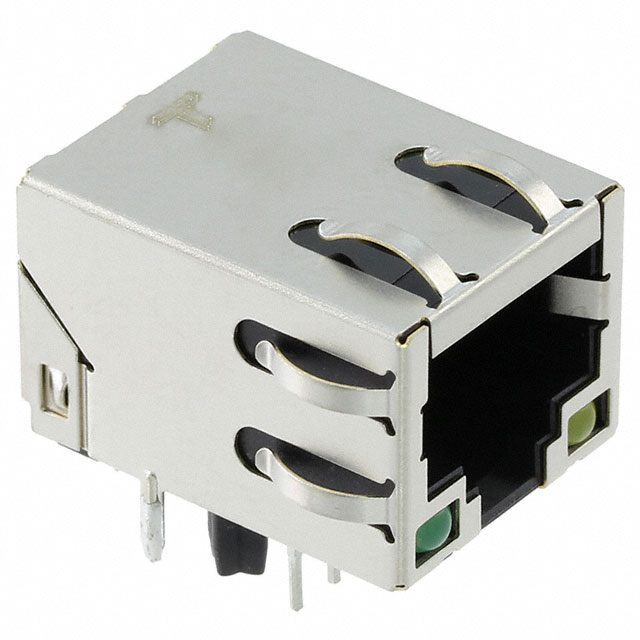

2250045-1

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 100 BASE-T PCB

Part	Contact Material	Number of Rows	Shield Material	Height Above Board	Height Above Board	Tab Direction	Termination	LED Color	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Shielding	Connector Type	Applications	Housing Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Ports
TRP Connector B.V. 2250045-1	Phosphor Bronze	1	Brass	0.541 in	13.75 mm	Down	Solder	Green, Yellow	Through Hole	Gold	50 µin	1.27 µm	Shielded, EMI Finger	RJ45	10/100 Base-T, AutoMDIX	Thermoplastic	90 °	85 °C	-40 °C	Board Guide	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
