Q5-2X-3/8-01-QB48IN-25

Active

Qualtek

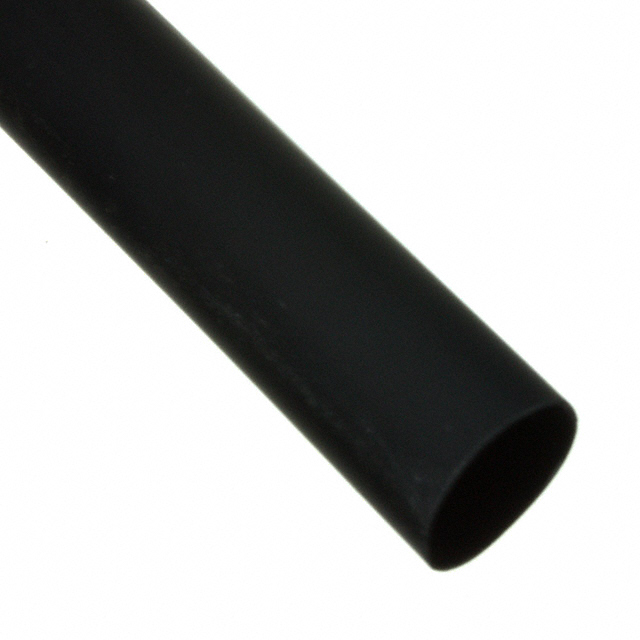

HEATSHRINK 3/8" X 4' BLACK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 3/8" X 4' BLACK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-2X-3/8-01-QB48IN-25

Color	Black
Features	Self Extinguishing, Adhesive Lined
Inner Diameter - Recovered [diameter]	4.75 mm
Inner Diameter - Recovered [diameter]	0.187 in
Inner Diameter - Supplied [diameter]	0.375 in
Inner Diameter - Supplied [diameter]	9.53 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-45 °C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shelf Life	60 Months
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Length	Length	Length	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Type	Shrink Temperature	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio	Length [x]	Length [x]
Qualtek Q5-2X-3/8-01-QB6IN-16	152.4 mm	6 "	0.5 '	Black	0.375 in	9.53 mm	Adhesive Lined Self Extinguishing	125 °C	-45 °C	Polyolefin (PO)	0.76 mm	0.03 "	4.75 mm	0.187 in	60 Months	Tubing Flexible	100 °C	-50 °F -10 °C	40 °C	2 to 1
Qualtek Q5-2X-3/8-01-QB48IN-25				Black	0.375 in	9.53 mm	Adhesive Lined Self Extinguishing	125 °C	-45 °C	Polyolefin (PO)	0.76 mm	0.03 "	4.75 mm	0.187 in	60 Months	Tubing Flexible	100 °C	-50 °F -10 °C	40 °C	2 to 1	1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 2 to 1 Black 4.00' (1.22m)
