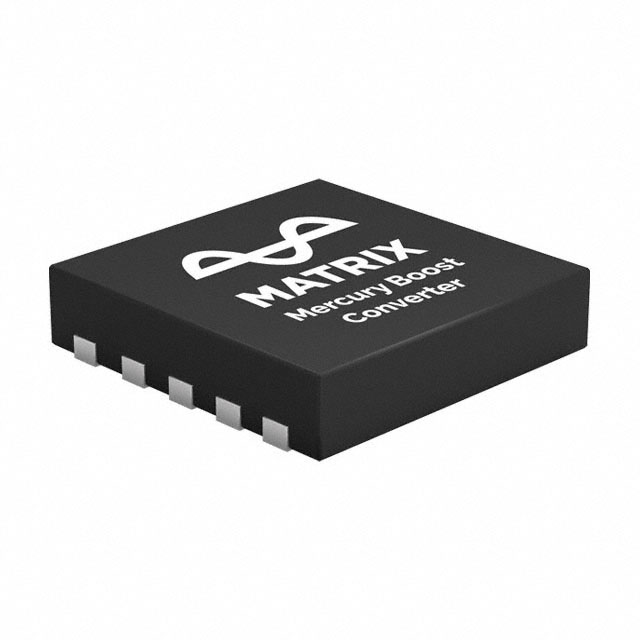

MCRY12-125Q-42DI

Active

Matrix Industries, Inc.

MATRIX MERCURY ENERGY HARVESTING

Search across all available documentation for this part.

Active

Matrix Industries, Inc.

MATRIX MERCURY ENERGY HARVESTING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MCRY12-125Q-42DI	MCRY12 Series

Applications	Energy Harvesting, Converter	Energy Harvesting, Converter
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	10-WFDFN Exposed Pad	10-WFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)	10-DFN (3x3)
Voltage - Input [Max]	1.98 V	1.98 V
Voltage - Input [Min]	0 V	0 V
Voltage - Output	4.2 V	4.2 V

MATRIX MERCURY ENERGY HARVESTING

Part	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Voltage - Output	Number of Outputs	Applications
Matrix Industries, Inc. MCRY12-125Q-42DIT	10-WFDFN Exposed Pad	0 V	1.98 V	85 °C	-40 °C	Surface Mount	10-DFN (3x3)	4.2 V	1	Converter, Energy Harvesting
Matrix Industries, Inc. MCRY12-125Q-42DI	10-WFDFN Exposed Pad	0 V	1.98 V	85 °C	-40 °C	Surface Mount	10-DFN (3x3)	4.2 V	1	Converter, Energy Harvesting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

- Converter, Energy Harvesting Voltage Regulator IC 1 Output 10-DFN (3x3)
