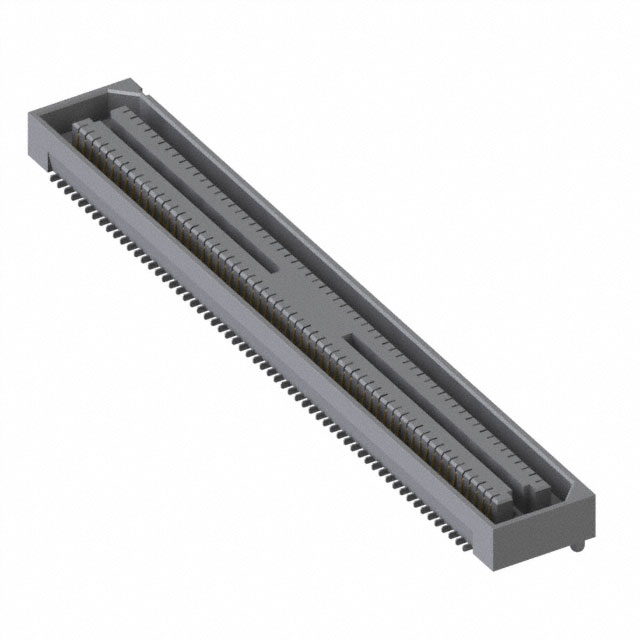

BSE-060-01-L-D-A-TR

Active

Samtec Inc.

CONN RCPT 120POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 120POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BSE-060-01-L-D-A-TR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	8 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Mated Stacking Heights	Contact Finish	Contact Finish Thickness	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Features
Samtec Inc. BSE-060-01-F-D-LC	3.25 mm	0.128 in	2	0.8 mm	0.031 in	120	Surface Mount	5 mm 8 mm	Gold	Flash	Center Strip Contacts Receptacle
Samtec Inc. BSE-060-01-L-D	3.25 mm	0.128 in	2	0.8 mm	0.031 in	120	Surface Mount	5 mm 8 mm	Gold		Center Strip Contacts Receptacle	10 Áin	0.25 Ám
Samtec Inc. BSE-060-01-F-D-A-TR	3.25 mm	0.128 in	2	0.8 mm	0.031 in	120	Surface Mount	5 mm 8 mm	Gold	Flash	Center Strip Contacts Receptacle			Board Guide
Samtec Inc. BSE-060-01-F-D-EM2			2	0.8 mm	0.031 in	120	Board Edge Straddle Mount		Gold	Flash	Center Strip Contacts Receptacle
Samtec Inc. BSE-060-01-L-D-LC	3.25 mm	0.128 in	2	0.8 mm	0.031 in	120	Surface Mount	5 mm 8 mm	Gold		Center Strip Contacts Receptacle	10 Áin	0.25 Ám
Samtec Inc. BSE-060-01-L-D-FL	3.25 mm	0.128 in	2	0.8 mm	0.031 in	120	Surface Mount	5 mm 8 mm	Gold		Center Strip Contacts Receptacle	10 Áin	0.25 Ám	Friction Lock
Samtec Inc. BSE-060-01-L-D-A-TR	3.25 mm	0.128 in	2	0.8 mm	0.031 in	120	Surface Mount	5 mm 8 mm	Gold		Center Strip Contacts Receptacle	10 Áin	0.25 Ám	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
