CWN-300-10-0000

Active

CW Industries

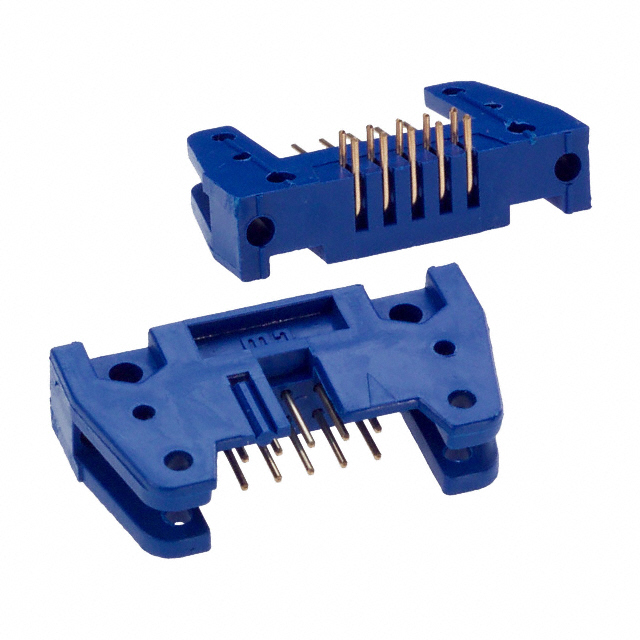

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CWN-300-10-0000

Active

CW Industries

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWN-300-10-0000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Blue
Insulation Height	7.4 mm
Insulation Height	0.291 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CWN-300 Series

Part	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Material	Contact Shape	Contact Type	Material Flammability Rating	Number of Rows	Contact Material	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Style	Fastening Type	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions
CW Industries CWN-300-50-0021	All	2.54 mm	0.1 in	50	30 Áin	0.76 Ám	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold
CW Industries CWN-300-26-0021	All	2.54 mm	0.1 in	26	30 Áin	0.76 Ám	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold
CW Industries CWN-300-40-0000	All	2.54 mm	0.1 in	40	10 çin	0.25 çm	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold
CW Industries CWN-300-14-0021	All	2.54 mm	0.1 in	14	30 Áin	0.76 Ám	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold
CW Industries CWN-300-60-0021	All	2.54 mm	0.1 in	60	30 Áin	0.76 Ám	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold
CW Industries CWN-300-16-0000	All	2.54 mm	0.1 in		10 çin	0.25 çm	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold	16
CW Industries CWN-300-20-0000	All	2.54 mm	0.1 in	20	10 çin	0.25 çm	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold
CW Industries CWN-300-10-0021	All	2.54 mm	0.1 in	10	30 Áin	0.76 Ám	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold
CW Industries CWN-300-14-0000	All	2.54 mm	0.1 in	14	10 çin	0.25 çm	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold
CW Industries CWN-300-10-0000	All	2.54 mm	0.1 in	10	10 çin	0.25 çm	Solder	0.09 "	2.29 mm	Shrouded - 4 Wall	Thermoplastic	Circular	Male Pin	UL94 V-0	2	Phosphor Bronze	Through Hole Right Angle	0.1 in	2.54 mm	7.4 mm	0.291 in	Board to Cable/Wire	Push-Pull	Nickel	6.1 mm	0.24 in	-55 °C	125 °C	Blue	Header	1.27 µm	50 µin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.55
		10	$ 3.01
		100	$ 2.56
		500	$ 2.29
		1000	$ 2.18
		5000	$ 1.94

Description

General part information

CWN-300 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
