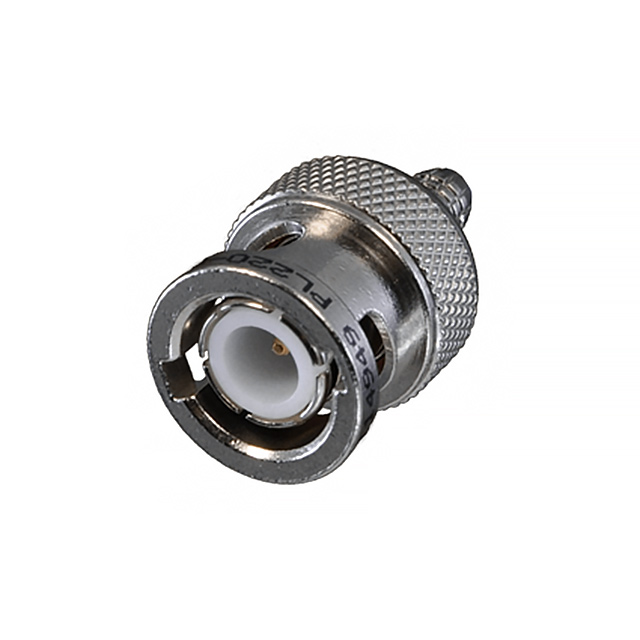

PL220-011

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PL220-011

Body Finish	Nickel
Body Material	Brass
Cable Group	141, 303, RG-58
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

CONN BNC PLUG STR 50OHM CRIMP

Part	Cable Group	Shield Termination	Connector Style	Voltage Rating	Housing Color	Dielectric Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Fastening Type	Center Contact Plating	Impedance	Body Finish	Connector Type	Contact Termination	Mounting Type	Body Material
Cinch Connectivity Solutions Trompeter PL220-011	141, 303, RG-58	Crimp	BNC	500 V	Silver	Polytetrafluoroethylene (PTFE)	1	-65 ░C	165 °C	4 GHz	Bayonet Lock	Gold	50 Ohms	Nickel	Male Pin, Plug	Crimp	Free Hanging (In-Line)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
