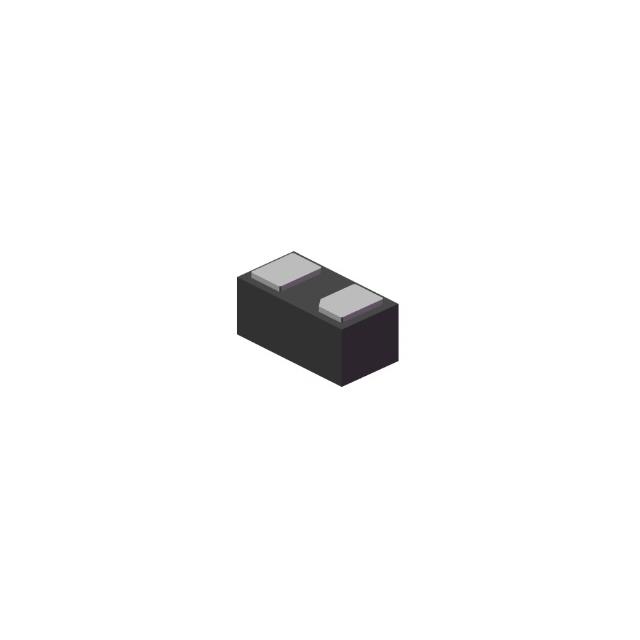

EGUARD0551P
ActiveSMC Diode Solutions
TVS DIODE 5VWM 15VC DFN1006-2L
Deep-Dive with AI
Search across all available documentation for this part.
EGUARD0551P
ActiveSMC Diode Solutions
TVS DIODE 5VWM 15VC DFN1006-2L
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EGUARD0551P |
|---|---|
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.5 pF |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Power - Peak Pulse | 60 W |
| Supplier Device Package | DFN1006-2L |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 10000 | $ 0.13 | ||
Description
General part information
EGUARD0551 Series
15V Clamp Ipp Tvs Diode Surface Mount DFN1006-2L
