E3032S.25.86

Active

Prysmian Group

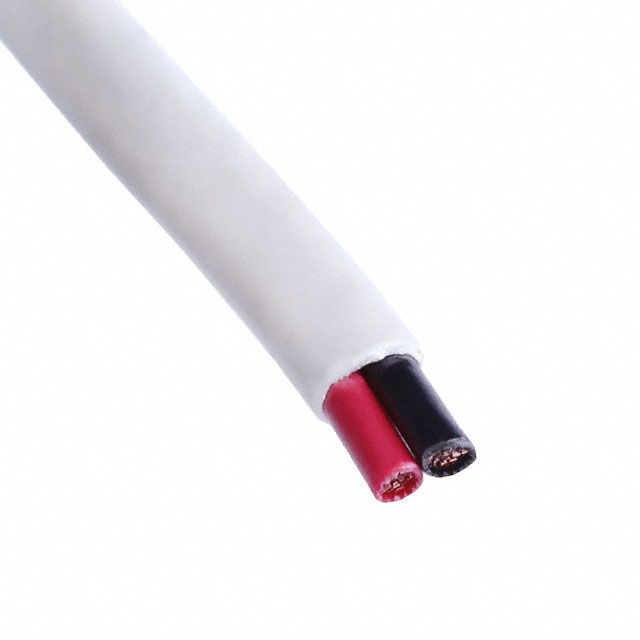

CABLE 2COND 18AWG NATURAL 500'

Deep-Dive with AI

Search across all available documentation for this part.

E3032S.25.86

Active

Prysmian Group

CABLE 2COND 18AWG NATURAL 500'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E3032S.25.86

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.156 in
Jacket (Insulation) Diameter [diameter]	3.96 mm
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	18 AWG

E3032S Series

Part	Jacket (Insulation) Material	Length	Length	Wire Gauge	Voltage	Number of Conductors	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length [x]	Usage	Ratings	Operating Temperature [Max]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material
Prysmian Group E3032S.41.86	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	15.24 m 304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7	Natural	50 ft 100 ft	Alarm Security Sound	ASTM B-3	75 ░C	30.5 m	0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare
Prysmian Group E3032S.30.02	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7			Alarm Security Sound	ASTM B-3	75 ░C		0.015 in	0.381 mm	Multi-Conductor	Copper Bare
Prysmian Group E3032S.30.10	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7	Gray		Alarm Security Sound	ASTM B-3	75 ░C		0.015 in	0.381 mm	Multi-Conductor	Copper Bare
Prysmian Group E3032S.30.22	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7	Green Neon		Alarm Security Sound	ASTM B-3	75 ░C		0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare
Prysmian Group E3032S.69.02	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7			Alarm Security Sound	ASTM B-3	75 ░C		0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare
Prysmian Group E3032S.30.86	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7	Natural		Alarm Security Sound	ASTM B-3	75 ░C		0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare
Prysmian Group E3032S.41.01	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7	Black		Alarm Security Sound	ASTM B-3	75 ░C		0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare
Prysmian Group E3032S.41.05	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7	Yellow		Alarm Security Sound	ASTM B-3	75 ░C		0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare
Prysmian Group E3032S.25.86	Plenum Poly-Vinyl Chloride (PVC)			18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7	Natural	500 '	Alarm Security Sound	ASTM B-3	75 ░C	152.4 m	0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare
Prysmian Group E3032S.41.02	Plenum Poly-Vinyl Chloride (PVC)	1000 ft	15.24 m 304.8 m	18 AWG	300 V	2	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	26 AWG	7		25 ft 50 ft 100 ft	Alarm Security Sound	ASTM B-3	75 ░C	7.62 m 30.5 m	0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25000	$ 0.16

Description

General part information

E3032S Series

2 Conductor Multi-Conductor Cable Natural 18 AWG 500.0' (152.4m)

Documents

Technical documentation and resources

No documents available
