R142076000

Active

Radiall USA, Inc.

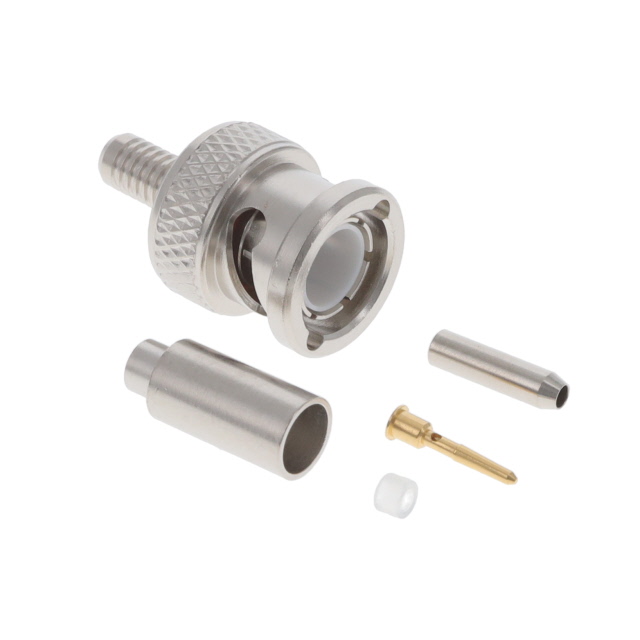

BNC / STRAIGHT PLUG CRIMP TYPE C

Deep-Dive with AI

Search across all available documentation for this part.

R142076000

Active

Radiall USA, Inc.

BNC / STRAIGHT PLUG CRIMP TYPE C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R142076000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

R14207 Series

Part	Cable Group	Mating Cycles	Center Contact Material	Number of Ports	Body Finish	Connector Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Impedance	Housing Color	Connector Style	Voltage Rating	Fastening Type	Center Contact Plating	Frequency - Max [Max]	Mounting Type	Dielectric Material	Shield Termination	Contact Termination
Radiall USA, Inc. R142077732W	Belden 1694A RG-6	1000	Brass	1	Gold	Male Pin Plug	Brass	-65 ░C	165 °C	0.2 dB	75 Ohms	Gold	BNC	500 V	Bayonet Lock	Gold	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142077722W	Belden 1505A RG-59	1000	Brass	1	Gold	Male Pin Plug	Brass	-65 ░C	165 °C	0.2 dB	75 Ohms	Gold	BNC	500 V	Bayonet Lock	Gold	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142077702W	Belden 1855A RG-59	1000	Brass	1	Gold	Male Pin Plug	Brass	-65 ░C	165 °C	0.2 dB	75 Ohms	Gold	BNC	500 V	Bayonet Lock	Gold	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142076161	187 RG-179		Brass	1	Nickel	Male Pin Plug	Brass	-35 °C	70 °C	0.2 dB	75 Ohms	Silver	BNC	335 V	Bayonet Lock	Gold	3 GHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142077702	Belden 1855A RG-59	1000	Brass	1	Gold	Male Pin Plug	Brass	-65 ░C	165 °C	0.2 dB	75 Ohms	Gold	BNC	500 V	Bayonet Lock	Gold	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142076000W	RG-179	500	Brass	1	Nickel	Male Pin Plug	Brass	-65 ░C	165 °C		75 Ohms	Silver	BNC	335 V	Bayonet Lock	Gold	1.5 GHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142077722	Belden 1505A RG-59	1000	Brass	1	Gold	Male Pin Plug	Brass	-65 ░C	165 °C	0.2 dB	75 Ohms	Gold	BNC	500 V	Bayonet Lock	Gold	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142076161W	187 RG-179		Brass	1	Nickel	Male Pin Plug	Brass	-35 °C	70 °C	0.2 dB	75 Ohms	Silver	BNC	335 V	Bayonet Lock	Gold	3 GHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142077732	Belden 1694A RG-6	1000	Brass	1	Gold	Male Pin Plug	Brass	-65 ░C	165 °C	0.2 dB	75 Ohms	Gold	BNC	500 V	Bayonet Lock	Gold	6000 MHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp
Radiall USA, Inc. R142076000	RG-179	500	Brass	1	Nickel	Male Pin Plug	Brass	-65 ░C	165 °C		75 Ohms	Silver	BNC	500 V	Bayonet Lock	Gold	1.5 GHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.76
		10	$ 6.98
		25	$ 6.58
		50	$ 6.41
		100	$ 6.24
		300	$ 5.94

Description

General part information

R14207 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
