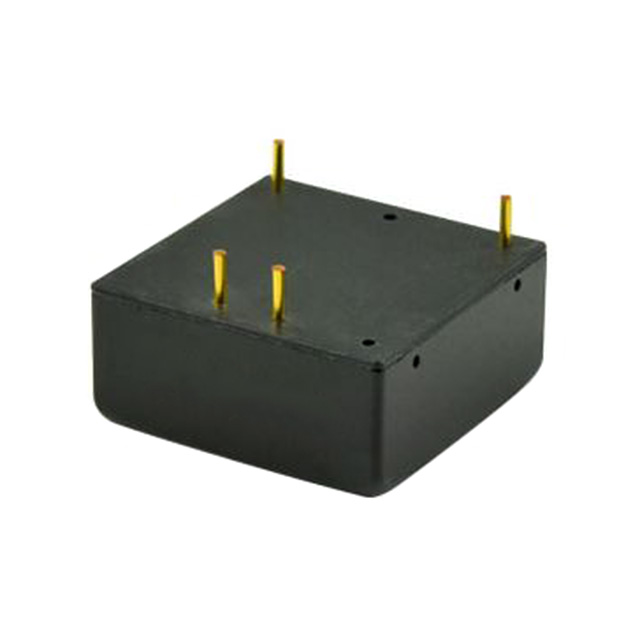

Specification	PQDE6W-Q24-D12-D

Applications	ITE (Commercial)
Approval Agency	IEC, UL, CB Scheme, EN
Current - Output (Max)	250 mA
Efficiency	87 %
Features	OCP, OVP, UVLO, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	5-DIP Module
Power (Watts)	6 W
Size / Dimension Height	0.46 in
Size / Dimension Length	1 in
Size / Dimension Width	1 in
Standard Number	55032 Class A, 60950-1, 55024
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	9 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

PQDE6W Series

...

Part	Applications	Efficiency	Mounting Type	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Type	Power (Watts)	Approval Agency	Voltage - Input (Min)	Package Leads	Package Name	Current - Output (Max)	Number of Outputs	Voltage - Output 2	DC Voltage - Input (Min)	DC Voltage - Input (Max)	Input Type	Standard Number	Features	Package / Case
CUI Inc. PQDE6W-Q110-S24-D	ITE (Commercial)	86 %	Through Hole	2.25 kV	24 V	160 VDC	85 °C	-40 °C	1 in	1 in	0.46 in	Isolated Module	6 W	CE	40 V	4 Leads	6-DIP Module	250 mA	1
CUI Inc. PQDE6W-Q24-D5-DIN	ITE (Commercial)	83 %		1500 Vrns	5 V		85 °C	-40 °C	2.99 in	1.24 in	0.87 in		6 W	CE cURus				600 mA	2	-5 V	10 V	36 V	DC
CUI Inc. PQDE6W-Q48-D12-T	ITE (Commercial)	87 %	Chassis Mount	1500 Vrns	12 V	75 V	85 °C	-40 °C	2.99 in	1.24 in	0.84 in	Enclosed	6 W	EN	19 V			250 mA	2	-12 V				55024 55032 Class A
CUI Inc. PQDE6W-Q24-S12-D	ITE (Commercial)	87 %	Through Hole	1500 Vrns	12 V	36 V	85 °C	-40 °C	1 in	1 in	0.46 in	Isolated Module	6 W	CB Scheme EN IEC UL	9 V	4 Leads	5-DIP Module	500 mA	1					55024 55032 Class A 60950-1	OCP OVP SCP UVLO
CUI Inc. PQDE6W-Q110-S15-H-T	ITE (Commercial)	85 %	Chassis Mount	2.25 kV	15 V	160 VDC	85 °C	-40 °C	2.99 in	1.24 in	0.99 in	Enclosed	6 W	CE	40 V			400 mA	1					62368-1
CUI Inc. PQDE6W-Q110-D12-D	ITE (Commercial)	84 %	Through Hole	2.25 kV	12 V	160 VDC	85 °C	-40 °C	1 in	1 in	0.46 in	Isolated Module	6 W	CE	40 V			250 mA	2	-12 V						6-DIP Module
CUI Inc. PQDE6W-Q110-D5-T	ITE (Commercial)	80 %	Chassis Mount	2.25 kV	5 V	160 VDC	85 °C	-40 °C	2.99 in	1.24 in	0.84 in	Enclosed	6 W	CE	40 V			600 mA	2	-5 V				62368-1
CUI Inc. PQDE6W-Q24-D15-DIN	ITE (Commercial)	88 %		1500 Vrns	15 V		85 °C	-40 °C	2.99 in	1.24 in	0.87 in		6 W	CE cURus				200 mA	2	-15 V	10 V	36 V	DC
CUI Inc. PQDE6W-Q110-S5-H-T	ITE (Commercial)	80 %	Chassis Mount	2.25 kV	5 V	160 VDC	85 °C	-40 °C	2.99 in	1.24 in	0.99 in	Enclosed	6 W	CE	40 V			1.2 A	1					62368-1
CUI Inc. PQDE6W-Q110-D12-DIN	ITE (Commercial)	84 %		2.25 kV	12 V		85 °C	-40 °C	2.99 in	1.24 in	1.02 in		6 W	CE				250 mA	2	-12 V	40 V	160 V	DC	62368-1
