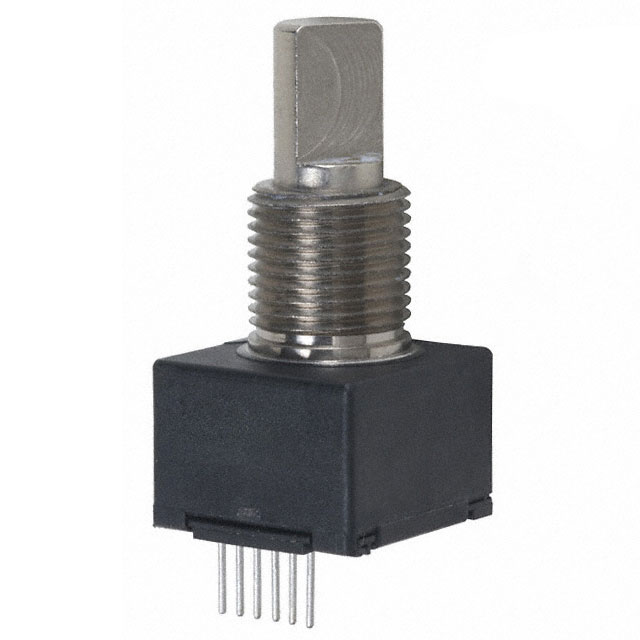

EM14A0A-B24-L064S
ActiveBourns Inc.
ROTARY ENCODER OPTICAL 64PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM14A0A-B24-L064S
ActiveBourns Inc.
ROTARY ENCODER OPTICAL 64PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM14A0A-B24-L064S |
|---|---|
| Actuator Type | 1/4" Dia Slotted End |
| Built in Switch | True |
| Detent | False |
| Encoder Type | Optical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 64 |
| Rotational Life (Cycles Min) | 1M |
| Termination Style | PC Pin |
EM14A0A Series
| Part | Built in Switch | Encoder Type | Rotational Life (Cycles Min) | Mounting Type | Orientation | Actuator Type | Pulses per Revolution | Termination Style | Detent | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Optical | 1M | Panel PCB Through Hole | Vertical | 1/4" Dia Slotted End | 64 | PC Pin | Quadrature (Incremental) | ||
Bourns Inc. | Optical | 1M | Vertical | 1/4" Dia Slotted End | 64 | Cable with Connector | Quadrature (Incremental) | |||
Bourns Inc. | Optical | 1M | Panel PCB Through Hole | Vertical | 1/4" Dia Slotted End | 64 | PC Pin | Quadrature (Incremental) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 20.29 | |
Description
General part information
EM14A0A Series
Rotary Encoder Optical 64 Quadrature (Incremental) Vertical
Documents
Technical documentation and resources
