HG3-AC115V-F

Obsolete

Panasonic Electric Works

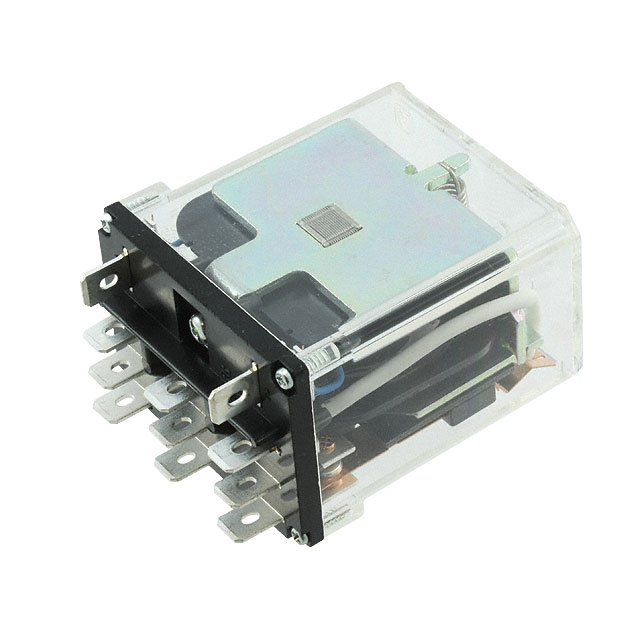

RELAY GEN PURPOSE 3PDT 20A 115V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 3PDT 20A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Coil Current	Contact Material	Switching Voltage	Coil Type	Termination Style	Coil Resistance	Coil Voltage	Contact Rating (Current)	Must Operate Voltage	Must Release Voltage	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Operate Time	Mounting Type	Approval Agency
Panasonic Electric Works HG3-AC48V	3PDT (3 Form C)	108 mA	Silver Alloy	250 VAC	Non Latching	Plug In Quick Connect - 0.250" (6.3mm)	444.4 Ohms	48 VAC/DC	20 A	38.4 VAC	14.4 VAC	General Purpose	40 °C	-50 °C	25 ms	25 ms	Socketable	CSA UR
Panasonic Electric Works HG3-AC6V	3PDT (3 Form C)	864 mA	Silver Alloy	250 VAC	Non Latching	Plug In Quick Connect - 0.250" (6.3mm)	7 Ohms	6 VAC	20 A	4.8 VAC/DC	1.8 VAC	General Purpose	40 °C	-50 °C	25 ms	25 ms	Socketable	CSA UR
Panasonic Electric Works HG3-AC24V	3PDT (3 Form C)	216 mA	Silver Alloy	250 VAC	Non Latching	Plug In Quick Connect - 0.250" (6.3mm)	111.1 Ohms	24 VAC	20 A	19.2 VAC	7.2 VAC	General Purpose	40 °C	-50 °C	25 ms	25 ms	Socketable	CSA UR
Panasonic Electric Works HG3-AC115V-F	3PDT (3 Form C)	45.2 mA	Silver Tin Oxide (AgSnO)	250 VAC	Non Latching	Plug In Quick Connect - 0.250" (6.3mm)	2544 Ohms	115 VAC	20 A	92 VAC	34.5 VAC	General Purpose	40 °C	-50 °C		40 ms	Socketable	CSA UR
