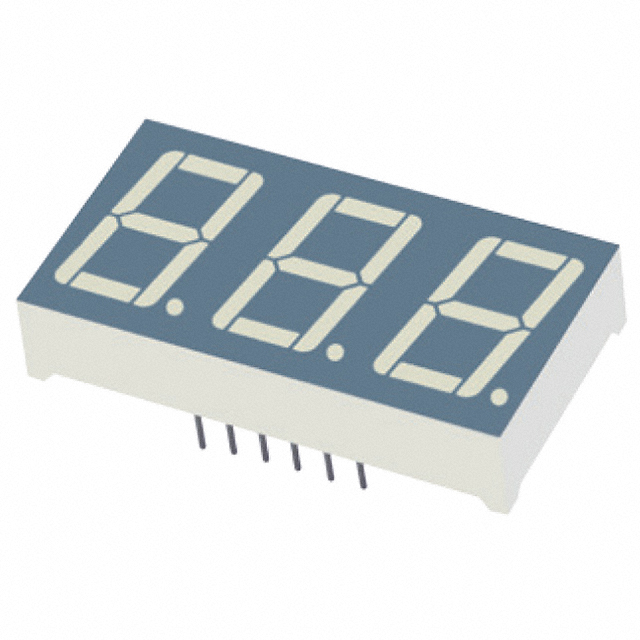

XDVG14C3

Active

SunLED

DISPLAY 7SEG 0.56" TRP GRN 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDVG14C3

Active

SunLED

DISPLAY 7SEG 0.56" TRP GRN 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDVG14C3

Color	Green
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	11 mcd
Number of Characters	3
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	12-DIP
Power Dissipation (Max) [Max]	75 mw
Voltage - Forward (Vf) (Typ)	2 V

XDVG14 Series

Part	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Display Type	Common Pin	Color	Power Dissipation (Max) [Max]	Millicandela Rating	Number of Characters	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current - Test	Package / Case	Package / Case	Package / Case	Package / Case	Number of Characters [custom]
SunLED XDVG14A2	0.56 in	14.22 mm	2 V	7-Segment	Common Anode	Green	75 mw	12 mcd	2	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	10 mA	15.24 mm	0.6 in	18-DIP
SunLED XDVG14A	0.56 in	14.22 mm	2 V	7-Segment	Common Anode	Green	75 mw	12 mcd		19.05 mm	12.7 mm	0.5 in	8 mm	0.315 "	0.75 in	10 mA		15.24 mm	10-DIP	0.6 in	1
SunLED XDVG14C2	0.56 in	14.22 mm	2 V	7-Segment	Common Cathode	Green	75 mw	12 mcd	2	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	10 mA	15.24 mm	0.6 in	18-DIP
SunLED XDVG14C3	0.56 in	14.22 mm	2 V	7-Segment	Common Cathode	Green	75 mw	11 mcd	3							10 mA		15.24 mm	12-DIP	0.6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	130	$ 2.54

Description

General part information

XDVG14 Series

Display Modules - LED Character and Numeric Green 7-Segment 3 Character Common Cathode 2V 10mA 0.748" H x 1.480" W x 0.319" D (19.00mm x 37.60mm x 8.10mm) 12-DIP (0.600", 15.24mm)
