C2543A.25.10

Active

Prysmian Group

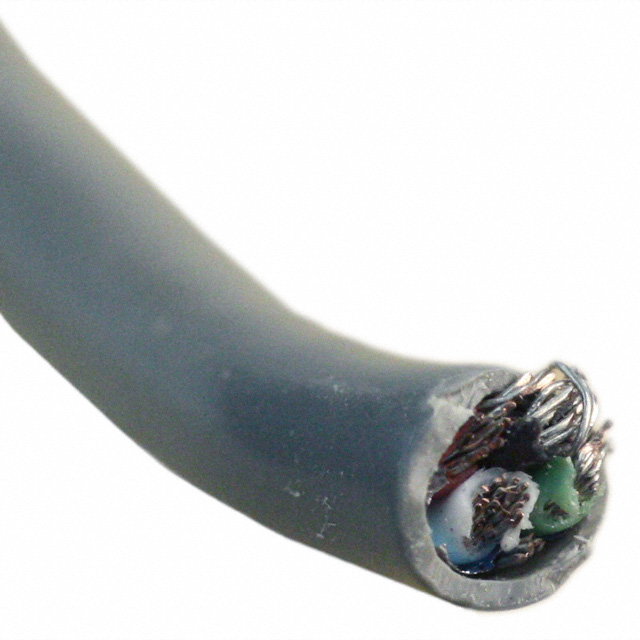

CABLE 4COND 18AWG GRAY SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 18AWG GRAY SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C2543A.25.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.05 mm
Jacket (Insulation) Diameter [diameter]	0.238 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Features	Shield Coverage	Number of Conductors	Voltage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Conductor Insulation	Shield Material	Jacket (Insulation) Material	Jacket Color	Wire Gauge	Cable Type	Shield Type	Length [x]	Length [x]	Usage
Prysmian Group C2543A.46.10	Drain Wire	100 %	4	300 V	Copper Annealed Tinned	6.05 mm	0.238 in	-20 C	80 C	19	30 AWG	ASTM B-33	Poly-Vinyl Chloride (PVC)	Flexfoil®	Poly-Vinyl Chloride (PVC)	Gray	18 AWG	Multi-Conductor	Foil
Prysmian Group C2543A.18.10	Drain Wire	100 %	4	300 V	Copper Annealed Tinned	6.05 mm	0.238 in	-20 C	80 C	19	30 AWG	ASTM B-33	Poly-Vinyl Chloride (PVC)	Flexfoil®	Poly-Vinyl Chloride (PVC)	Gray	18 AWG	Multi-Conductor	Foil	500 '	152.4 m	Communication Control
Prysmian Group C2543A.25.10	Drain Wire	100 %	4	300 V	Copper Annealed Tinned	6.05 mm	0.238 in	-20 C	80 C	19	30 AWG	ASTM B-33	Poly-Vinyl Chloride (PVC)	Flexfoil®	Poly-Vinyl Chloride (PVC)	Gray	18 AWG	Multi-Conductor	Foil	500 '	152.4 m	Communication Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Gray 18 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
